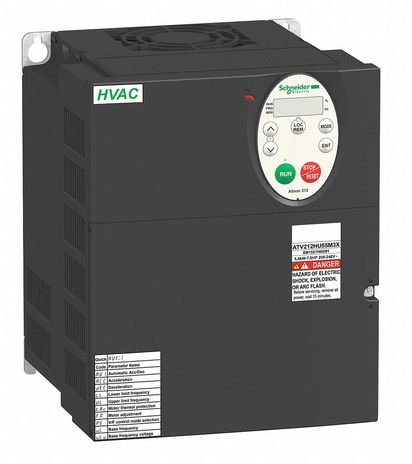

Square D ATV212HU75M3X

Name: Square D ATV212HU75M3X
Brand: Square D
SKU: CS3144514
Availability: OutOfStock

SKU: CS3144514MPN: ATV212HU75M3X

variable speed drive ATV212 - 7.5kW - 10hp - 240V - 3ph - wo EMC - IP21

Product Details

Altivar 212 VFD

10 HP* Continuous Output Current: 32 amps* AC Line Input Line Voltage: 208/240 VAC Three Phase Input/Output* Enclosure Rating: IP20

The Alitvar 212 drive includes:

3 logic inputs* 2 analog inputs* 1 analog output* 2 relay outputs (with 1 NO and 1 NO/NC contacts)* Integrated 4 digit, 7-segment LED display with a 7 button keypad* RJ45 Modbus port plus a four-screw terminal block for BACnet, Modbus, Metasys N2 and Apogee P1 communication protocols* LonWorks is available in an option card

Attributes

Acceleration And Deceleration Ramps	automatic based on the load# #linear adjustable separately from 0.01 to 3200 s
Air Flow	118 m3/h
Ambient Air Temperature For Storage	-25-70 °C
Analogue Input Number	2.0000
Analogue Output Number	1.0000
Assembly Style	with heat sink
Asynchronous Motor Control Profile	voltage/frequency ratio, automatic IR compensation (U/f + automatic Uo)# #voltage/frequency ratio, 5 points# #flux vector control without sensor, standard# #voltage/frequency ratio - Energy Saving, quadratic U/f# #voltage/frequency ratio, 2 points
Braking To Standstill	by DC injection
Communication Port Protocol	Modbus# #BACnet# #LonWorks# #METASYS N2# #APOGEE FLN
Communication Service	time out setting from 0.1 to 100 s# #monitoring inhibitable# #read device identification (43)# #write multiple registers (16) 2 words maximum# #write single register (06)# #read holding registers (03) 2 words maximum
Connector Type	1 RJ45# #1 open style
Data Format	8 bits, 1 stop, odd even or no configurable parity
Device Short Name	ATV212
Discrete Output Number	2.0000
Emc Filter	without EMC filter
Isolation	electrical between power and control
Marking	CE
Motor Slip Compensation	adjustable# #not available in voltage/frequency ratio motor control# #automatic whatever the load
Network Frequency	47.5…63 Hz
Network Number Of Phases	3 phases
Nominal Switching Frequency	12 kHz
Number Of Addresses	1-247
Operating Position	vertical ± 10 degree
Output Voltage	<= power supply voltage
Physical Interface	2-wire RS 485
Power Dissipation In W	346 W
Product Certifications	CSA# #C-Tick# #NOM 117# #UL
Product Destination	asynchronous motors
Product Or Component Type	variable speed drive
Product Specific Application	pumps and fans in HVAC
Prospective Line Isc	22 kA
Range Of Product	Altivar 212
Regulation Loop	adjustable PI regulator
Specific Application	HVAC
Speed Drive Output Frequency	0.5-200 Hz
Standards	EN 61800-3 environments 1 category C3# #IEC 61800-3 environments 1 category C2# #IEC 61800-3 environments 1 category C3# #IEC 61800-3# #EN 61800-3 environments 1 category C1# #UL Type 1# #EN 61800-5-1# #IEC 61800-3 environments 1 category C1# #IEC 61800-3
Supply Voltage Limits	170-264 V
Torque Accuracy	± 15 %
Transmission Frame	RTU
Transmission Rate	9600 bps or 19200 bps
Type Of Polarization	no impedance
