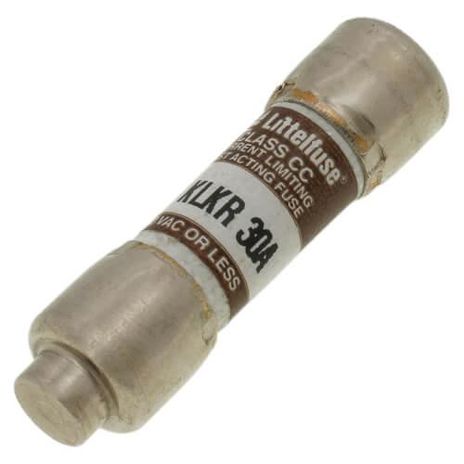

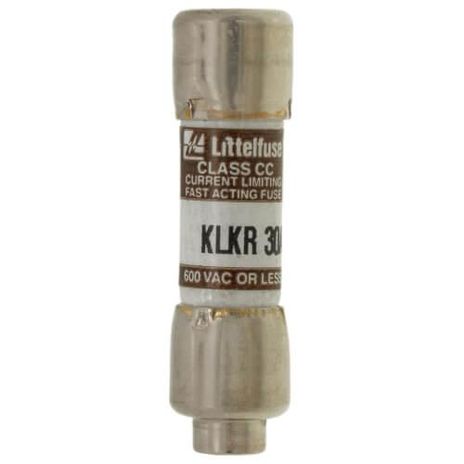

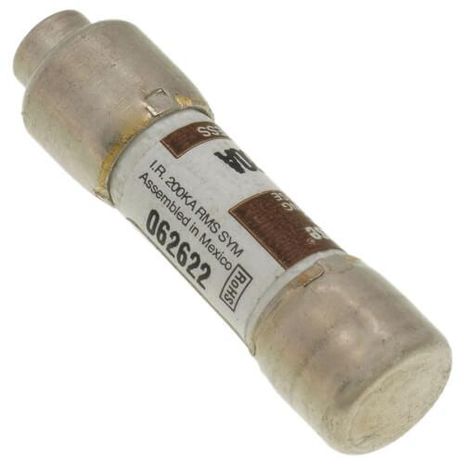

Trane FUS01010
SKU: CS3082698MPN: FUS01010
600v 30a Class Cc Fuse
Contact us for pricing and availability
Product Details
600v 30a Class Cc Fuse
Attributes
| Diameter (In) | 10.3 mm |
| Type | Highly Current Limiting |
| Standards | RoHS |
| Temperature Rating | -55 Deg. C Max, 125 Deg. C Max |
| Material | Melamine |
| Current Rating | 10A |
| Voltage (Vac) | 600, 300V |
| Voltage Rating | 600 V, 300 V, 600V AC, 300V DC |
| Finish | Nickel Plated Cap |
| Terminal Type | CLIP |
| Mounting Style | Clip |
| Rohs | True |
| Quantity/Package | 10 |
| Class | CC |
| Body Style | Cartridge Blade |
| Time Delay | Fast Acting |
| Voltage (Vdc) | 300 |
| Indicator Style | Without indicator |
| Interrupt Rating | 30 A, 200 kA at 600V AC, 20 kA at 300V DC Interrupt |
| Carton Quantity | 10 Piece per Pkg. |
| Max Operating Temperature (Deg C) | 125.0 |
| Min Operating Temperature (Deg C) | -55 DEG C MIN |
| Resistance | 2.954 mOhms |
Specifications
| SKU | CS3082698 |
|---|---|
| MPN | FUS01010 |
