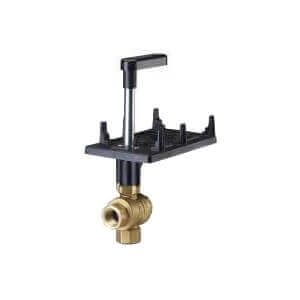

Siemens 599-10304S
SKU: CS3043963MPN: 599-10304SUPC/EAN: 804766017766
2W ½”, 2.5 Cv ball valve, stainless steel ball, stem, 200 psi close-off, NPT
$77.72
UnitAvailable on backorder
Product Details
This 599 Series 2-way ball valve is used to control hot or chilled water and up to 50% Glycol solution in convectors, fan coil units, unit conditioners, radiation and reheat coils. This ½-inch valve is 2.5 Cv, equal percentage flow characteristic, with stainless steel ball and stem, and an operating handle that can manually operate the valve in the event of power failure.
Attributes
| Close Off Pressure | 200 psi |
| End Connection | NPT |
| Flow Characteristic | Equal-percentage |
| Flow Coefficient Cv | 2.5000 |
| Leakage Rate | ANSI Class IV |
| Material Inside Set | Ball: Stainless Steel;Ball Seals: Glass filled PTFE with EPDM O-rings;Stem: Stainless Steel;Stem Seals: EPDM O-rings |
| Material Valve Body | Brass |
| Medium | Water;Water with anti-freeze |
| Medium Temperature | 35…250 ºF |
| Medium Temperature F Max | 250 ºF |
| Medium Temperature F Min | 35 ºF |
| Mounting Position | any |
| Permissible Operating Pressure | 1379 kPa |
| Port Configuration | 2-Way Normally open |
| Trim Material | Stainless Steel |
| Valve Body Style | Rotary-Ball |
| Valve Size | 0.5 in |
| Valve Type | Two-way |
Specifications
| SKU | CS3043963 |
|---|---|
| MPN | 599-10304S |
| UPC/EAN | 804766017766 |
