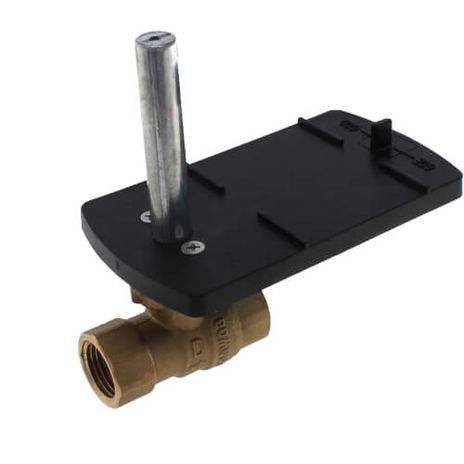

Siemens 599-10304
SKU: CS2768432MPN: 599-10304UPC/EAN: 804766015304
2W ½”, 2.5CV ball valve, chrome-plated brass ball, brass stem, 200 psi close-off
$67.20
UnitAvailable on backorder
Product Details
This 599 Series 2-way ball valve is used to control hot or chilled water and up to 50% Glycol solution in convectors, fan coil units, unit conditioners, radiation and reheat coils. This ½-inch valve is 2.5 Cv, equal percentage flow characteristic, with chrome-plated brass ball and brass stem, and an operating handle that can manually operate the valve in the event of power failure.
Attributes
| Close Off Pressure | 200 psi |
| End Connection | NPT |
| Flow Characteristic | Equal-percentage |
| Flow Coefficient Cv | 2.5000 |
| Leakage Rate | ANSI Class IV |
| Material Inside Set | Ball: Chrome-plated brass;Ball Seals: Glass filled PTFE with EPDM O-rings;Stem: Brass;Stem Seals: EPDM O-rings |
| Material Valve Body | Brass |
| Medium | Water;Water with anti-freeze |
| Medium Temperature | 35…250 ºF |
| Medium Temperature F Max | 250 ºF |
| Medium Temperature F Min | 35 ºF |
| Mounting Position | any |
| Permissible Operating Pressure | 1379 kPa |
| Port Configuration | 2-Way Normally open |
| Trim Material | Chrome-plated Brass |
| Valve Body Style | Rotary-Ball |
| Valve Size | 0.5 in |
| Valve Type | Two-way |
Specifications
| SKU | CS2768432 |
|---|---|
| MPN | 599-10304 |
| UPC/EAN | 804766015304 |
