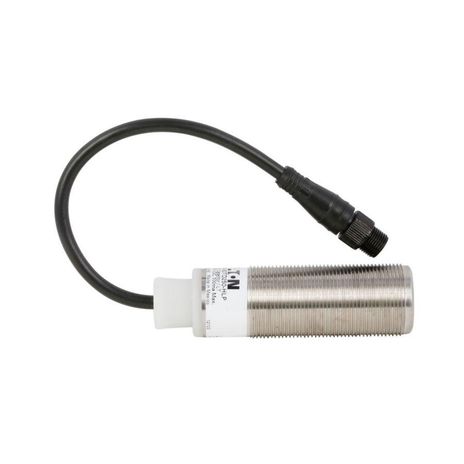

Eaton E58-30TD250-HLP
SKU: CS3023347MPN: E58-30TD250-HLPUPC/EAN: 782114091593
Eaton harsh-duty sensor
Contact us for pricing and availability
Product Details
Eaton harsh-duty sensor, E58, Through Beam, Straight, Power ON, M12, 100 mA at 10-30 Vdc, 4 pin, NPN and PNP open collector, 10-30 Vdc
Attributes
| Connection | M12 |
| Contact Configuration | NPN and PNP open collector |
| Contact Rating | 100 mA at 10-30 Vdc |
| Enclosure Material | 303 stainless steel |
| Environmental Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 12K, NEMA 13, IP69K |
| Input Voltage | 10-30 Vdc |
| Led Indicator | Power on |
| Maximum Dc Current | 100 mA |
| Number Of Pins | 4.0000 |
| Operating Temperature Max | 131 FAH |
| Operating Temperature Max Uom | FAH |
| Operating Temperature Min | -40 FAH |
| Operating Temperature Min Uom | FAH |
| Protection | Auto reset short circuit |
| Sensor Type | Through beam |
| Series | E58 |
Specifications
| SKU | CS3023347 |
|---|---|
| MPN | E58-30TD250-HLP |
| UPC/EAN | 782114091593 |
