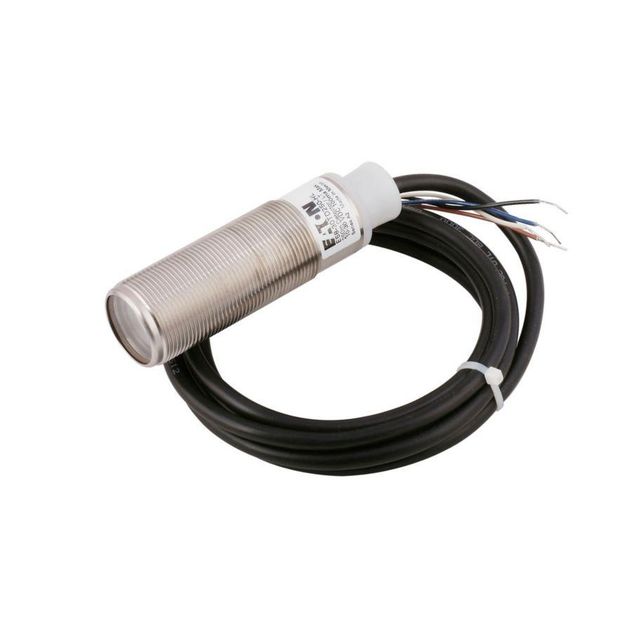

Eaton E58-30TD250-HL5
SKU: CS4873513MPN: E58-30TD250-HL5UPC/EAN: 782114740149
Eaton harsh-duty sensor
Contact us for pricing and availability
Product Details
Eaton harsh-duty sensor, E58 Tubular 30mm Photoelectric Sensor, 1.18 dia, dist. 800 Ft., PNP and NPN Open Collector, PNP: 100 mA, NPN: 100 mA at 30Vdc, 16.4 Ft. (5m) Cable, 10-30 Vdc input, Latching short circuit, Thru-Beam, 16 Ft. (5m)
Attributes
| Cable Type | Polyvinyl Chloride (PVC) |
| Connection | 16.4 ft (5 m) cable |
| Contact Configuration | PNP and NPN open collector |
| Contact Rating | PNP: 100 mA, NPN: 100 mA at 30Vdc |
| Enclosure Material | Stainless steel |
| Environmental Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP69K |
| Input Voltage | 10-30 Vdc |
| Led Indicator | Output status: red |
| Maximum Dc Current | PNP: 100 mA, NPN: 100 mA |
| Operating Mode | Thru-beam |
| Operating Temperature Max | 131 FAH |
| Operating Temperature Max Uom | FAH |
| Operating Temperature Min | -40 FAH |
| Operating Temperature Min Uom | FAH |
| Protection | Latching short circuit |
| Sensor Type | Through beam |
| Switch Type | Photoelectric |
Specifications
| SKU | CS4873513 |
|---|---|
| MPN | E58-30TD250-HL5 |
| UPC/EAN | 782114740149 |
