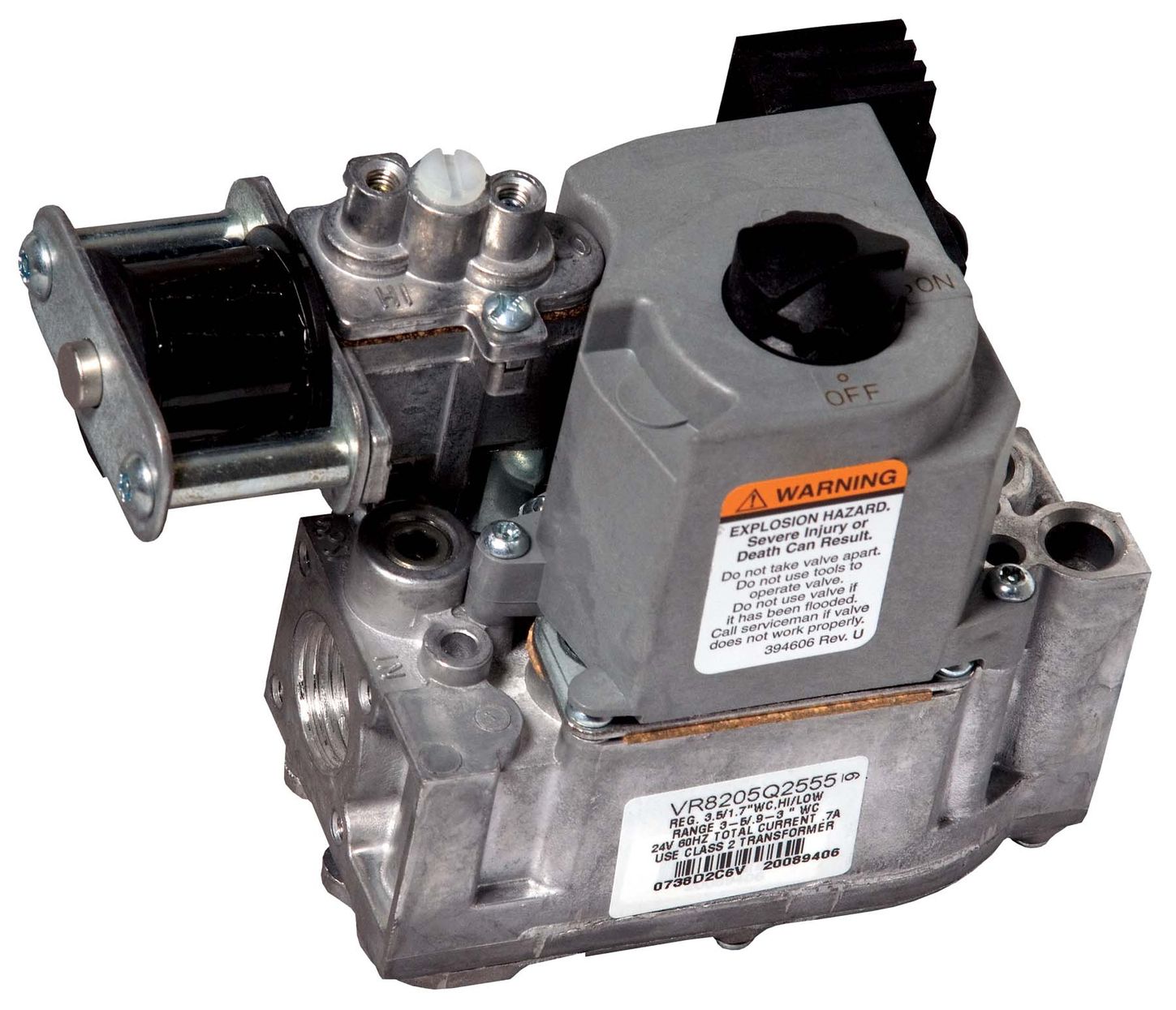

Resideo VR8205Q2555

Two Stage Gas Controls for Direct Ignition appliance, ½ in x ½ in inlet/outlet size, Standard Opening, 24 V AC, Natural Gas

Product Overview:

• Combination gas controls for use with hot surface/direct spark systems in 24 Vac, gas-fired appliances with capacities from 20 to 200 cfh

Product Features:

• Controls include manual valve, two automatic operators, and pressure regulator
• Provide two automatic valves
• Solenoid operated first automatic valve opens on thermostat call for heat; closes when call for heat ends
• Diaphragm operated second automatic valve opens under control of the regulator; closes if gas or power supply is interrupted
• Meets codes requiring dual safety shutoff
• Natural to LP and LP to Natural conversion kits available for standard and slow opening gas valves
• Adjustments and wiring connections are accessible from top of the control
• ON-OFF lighting sequence

Product Specifications:

• Type: Two Stage
• Ignition Type: Direct Ignition
• Type of Gas: Natural
• Inlet/Outlet Size (in.): ½ in. x ½ in.
• Body Pattern: Straight-through
• Opening Characteristics: Standard
• Pressure Regulator Setting (psi): 1.7 in. wc low; 3.5 in. wc high
• Electrical Ratings: 24 Vac
• Frequency: 60 Hz
• Temperature Range (F): -40 F to +175 F
• Temperature Range (C): -40 C to +66 C
• Includes: Natural to LP Conversion Kit, one ½” x ⅜” reducer bushing
