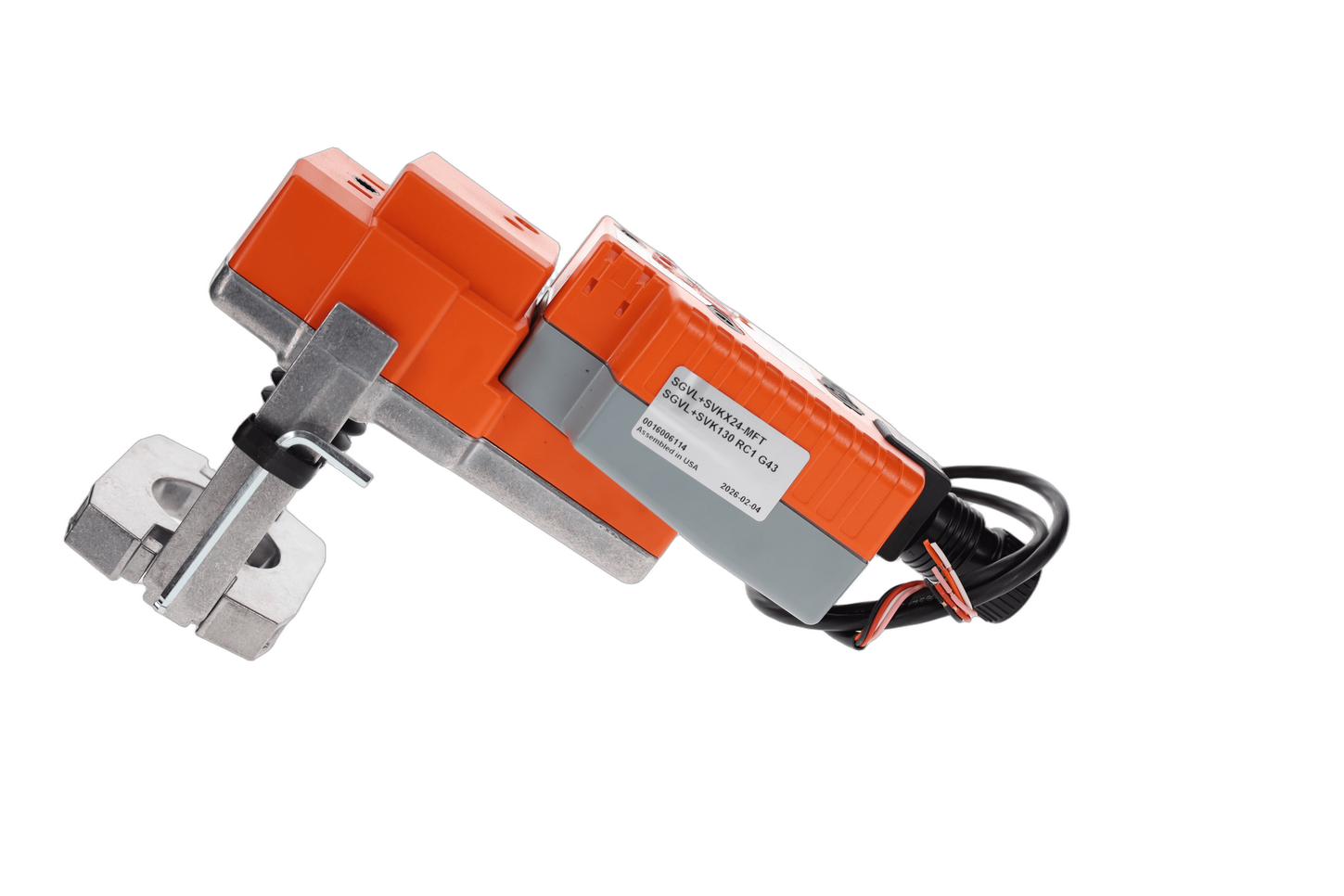

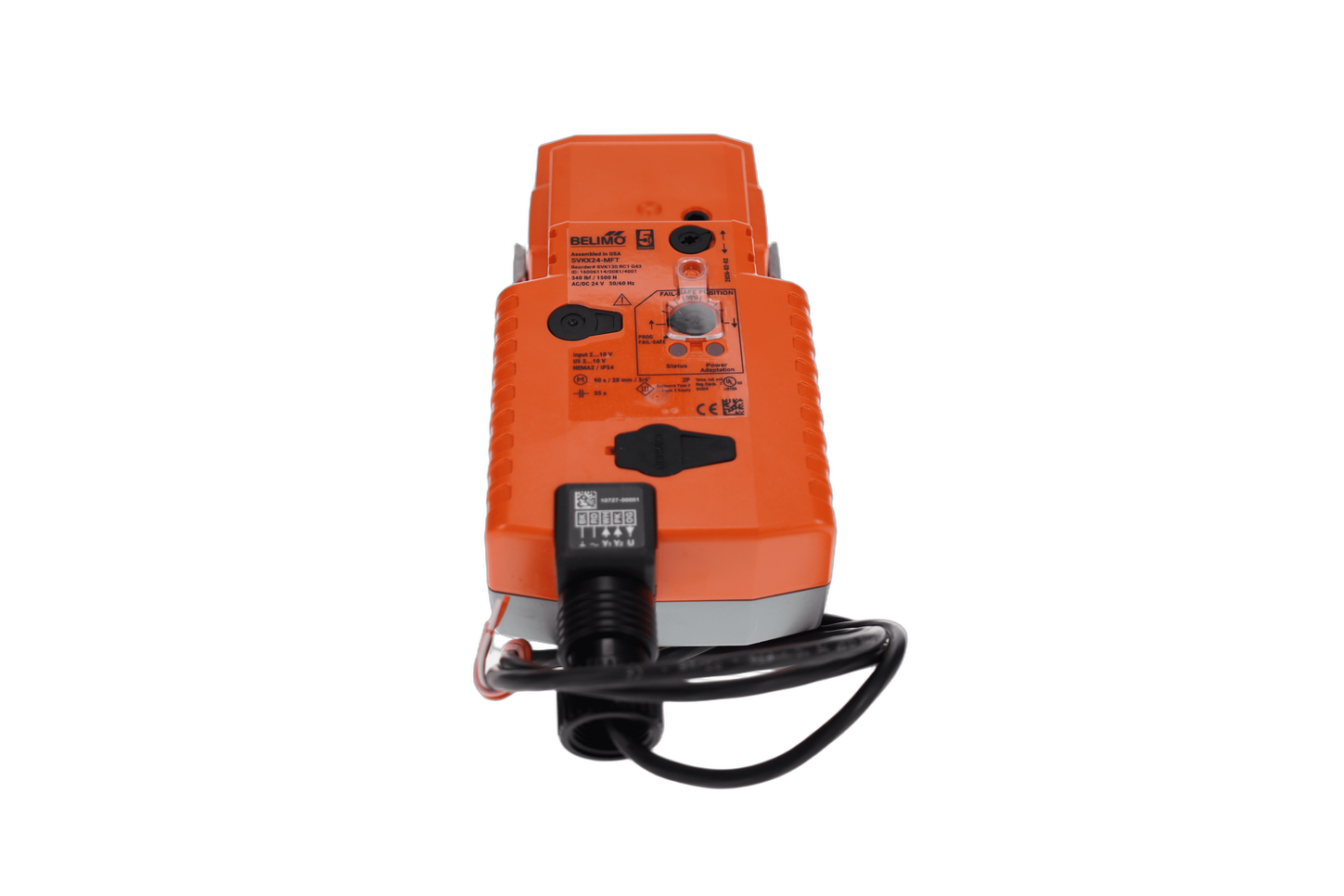

Belimo SGVL+SVKX24-MFT

Name: Belimo SGVL+SVKX24-MFT
Brand: Belimo
SKU: CS2962325
Price: 662.31 USD
Availability: InStock

SKU: CS2962325MPN: SGVL+SVKX24-MFT

Retrofit valve linkageFor Schneider Globe Valve with LV and SV Series Actuators|Valve Actuator, Electronic fail-safe, AC/DC 24 V, 2...10 V, MFT/pro…

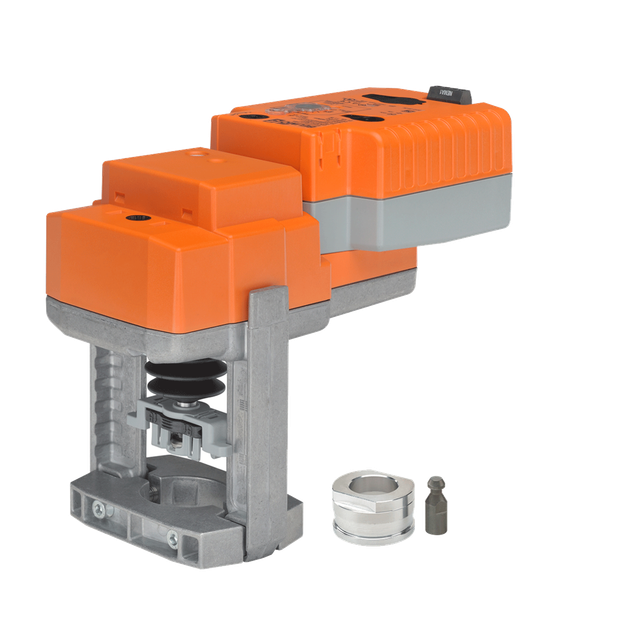

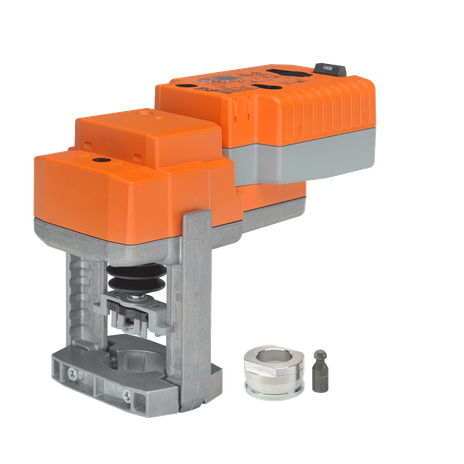

Belimo SGVL+LVKB24-MFT, SGVL+LVKB24-SR, SGVL+LVKX120-3, SGVL+LVKX24-3, SGVL+LVKX24-SR, SGVL+SVKB24-MFT, SGVL+SVKB24-SR, SGVL+SVKX120-3, SGVL+SVKX24-3, SGVL+SVKX24-MFT, SGVL+SVKX24-SR

$662.31

Unit

2 in stock

Quantity

remove

add

Product Details

Retrofit valve linkageFor Schneider Globe Valve with LV and SV Series Actuators|Valve Actuator, Electronic fail-safe, AC/DC 24 V, 2...10 V, MFT/programmable

Attributes

Control	MFT/programmable
Fail-Safe	Electronic fail-safe 0…100%
Nominal Voltage	AC/DC 24 V
Transformer Sizing	7 VA (class 2 power source)
Enclosure	UL Enclosure Type 2
Power Supply	24 VAC, ±20%, 50/60 Hz, 24 VDC, ±10%
Power Consumption In Operation	3 W
Power Consumption In Rest Position	2 W
Electrical Connection	18 GA plenum cable, 3 ft [1 m], with ½” conduit connector, degree of protection NEMA 2 / IP54
Overload Protection	electronic throughout full stroke
Operating Range	2…10 V (default), 4…20 mA w/ ZG-R01 (500 Ω, ¼ W resistor), variable (VDC, PWM, on/off, floating point)
Operating Range Y Variable	Start point 0.5…30 V End point 2.5…32 V
Input Impedance	100 kΩ for 2…10 V (0.1 mA), 500 Ω for 4…20 mA, 1500 Ω for PWM, On/Off and Floating point
Position Feedback	2…10 V, Max. 0.5 mA, VDC variable
Direction Of Motion Motor	selectable with switch
Position Indication	Mechanically, with pointer
Running Time (Motor)	default 90 s, variable 35…150 s
Running Time Fail-Safe	<35 s
Ambient Humidity	max. 95% r.H., non-condensing
Ambient Temperature	-22…122°F [-30…50°C]
Storage Temperature	-40…176°F [-40…80°C]
Fluid	chilled or hot water and steam
Fluid Temp Range (Water)	Please Refer to Manufacturer’s Valve Specifications
Degree Of Protection Iec/En	IP54
Degree Of Protection Nema/Ul	NEMA 2
Connection	cable
Stroke	0.95” [24 mm]
Servicing	maintenance-free
Housing Material	Die cast aluminium and plastic casing
Nominal Voltage Dc	24 V
Nominal Voltage Ac	24 V
Noise Level, Motor	45 dB(A)
Electrical Protection	actuators are double insulated
Quality Standard	ISO 9001
Noise Level, Fail-Safe	60 dB(A)
Agency Listing	cULus acc. to UL60730-1A/-2-14, CAN/CSA E60730-1:02, CE acc. to 2014/30/EU and 2014/35/EU
Frame, Plate, Base	aluminum
Collar	aluminum (fits VB7 ½” to 2” /VB9 ½”-1-¼” valves) also fits post 1994 1-½” to 2” valves
Stem Adaptor	steel
Mounting Position	360°
Applicable Valve Size	15…50
Coupling	GF Nylon supplied
Hardware	SS and Nickel plated steel
Fail-Safe Function	Electronic fail-safe
Control Type Web	MFT/Programmable
Fail-Safe	YES
