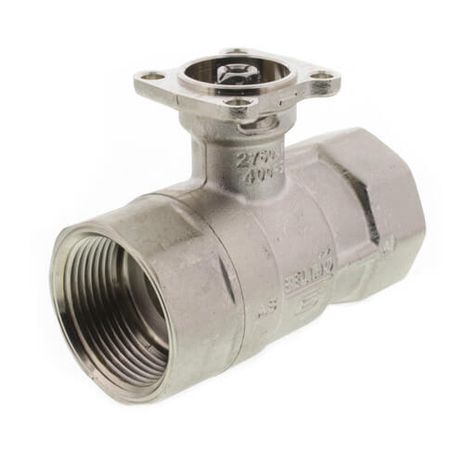

Belimo B232
SKU: CS2547378MPN: B232
Characterized Control Valve (CCV), 1 ¼”, 2-way, Cv 37
Product Details
Characterized Control Valve (CCV), 1 ¼”, 2-way, Cv 37
Attributes
| Valve Size | 1.25” [32] |
| Cv | 37.0 |
| Flow Pattern | 2-way |
| Valve Trim | Stainless steel |
| Close-Off Pressure ∆Ps | 200 psi |
| Pressure Independent | NO |
| Fluid | chilled or hot water, up to 60% glycol |
| Controllable Flow Range | 75° |
| Pipe Connection | NPT female ends |
| Fluid Temp Range (Water) | 0…250°F [-18…120°C] |
| Cv Range [Gpm] | 17…47 |
| Pipe Connection Type | internal thread |
| Kvs Range [M³/H] | 15…40 m³/h |
| Flow Characteristic | equal percentage |
| Servicing | maintenance-free |
| Valve Body | Nickel-plated brass body |
| Stem | stainless steel |
| Seat | PTFE |
| Stem Seal | EPDM (lubricated) |
| Characterized Disc | No Disc (full flow) |
| Body Pressure Rating | 400 psi |
| O-Ring | EPDM (lubricated) |
| Ball | stainless steel |
Specifications
| SKU | CS2547378 |
|---|---|
| MPN | B232 |
