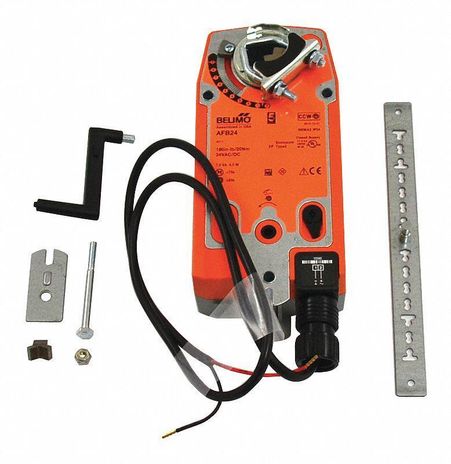

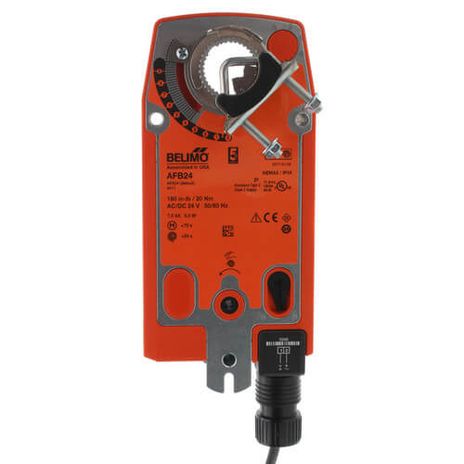

Belimo AFB24

Damper Actuator, 180 in-lb [20 Nm], Spring return, AC/DC 24 V, On/Off

Features:

• Cut labor costs with simple direct coupling
• True mechanical spring return - the most reliable fail-safe
• Reverse mount for clockwise or counterclockwise fail-safe
• Check damper position easily with clear position indicator
• Overload-proof throughout rotation
• Temporary restrictions in damper movement will not change actuator operation. Actuator returns to normal operation when restriction is removed (modulating actuators)
• By eliminating internal condensation Golden Point breather membrane optimizes performance in harsh airstream environments
• Built-in auxiliary switch is easy to use, offers feedback or signal for additional device (-S models)
• Manual override crank speeds installation
• Need to change control direction? Do it easily with a simple switch (modulating actuators)
• Microprocessor-controlled brushless DC motor increases actuator life span and reliability, provides constant running time (modulating actuators)
• Rugged metal housing withstands rough handling in the mechanical room
• 3 ft. appliance cable and conduit connector eases installation
• Double insulated - no need for separate safety ground. A Belimo exclusive (-S,120V, 230V models)
• Automatically compensates for damper seal wear, ensuring tight close-off

The AFB24 is used for On/Off, fail-safe control of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications. Control is On/Off from an auxiliary contact, or a manual switch.

The AFB series actuators provide true spring return operation for reliable fail-safe application and positive close off on air tight dampers. The spring return system provides consistent torque to the damper with, and without, power applied to the actuator.
