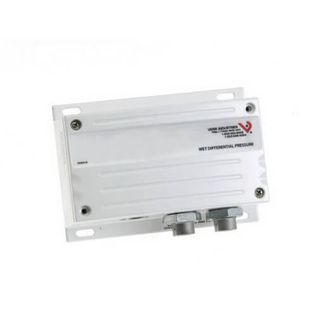

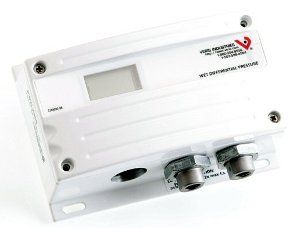

Veris PWXX03S
Differential Air Pressure Trans: For the monitoring of air ducts, filters and fans, SPD310-100/300/500/1000Pa
Product Details
SPECIFICATIONS: Input Power 12 to 30VDC/24VAC nominal, Output 3-wire transmitter; user selectable 4-20mA, (clipped and capped)/0-5V/0-10V†, Accuracy @ 25º ±1% F.S. Combined linearity, hysteresis, and repeatability; Range D accuracy ±2% F.S.**, Surge Damping Electronic; 5-second averaging, Test Mode Overrides output to full-scale (20mA, 5V, 10V), 0-50 psi (0-3.45 bar) 0-5/10/25/50psid (0-0.34/0.69/1.72/3.45 bar), Product Operating Environment -10° to 55°C (-4° to 130°F); 0 to 90%RH, non-condensing, Long Term Stability ±0.25% per year, Zero Adjust Pushbutton auto-zero and digital input (2-pos terminal block), Status Indication Dual-color LED: Green \= Normal, Green Blinking \= L0w > High, Red \= Overrange, Red Blinking \= Overpressure, Housing Material White powder-coated aluminum, Media Compatibility media compatible with 17-4 PH stainless steel, Proof Pressure Max. 2x F.S. range, Burst Pressure Max. 5x F.S. range, Temperature Compensated Range 0° to 50°C (32° to 122°F); TC Zero (\<±1.5% of product F.S. per sensor; TC Span (\<±1.5% of product F.S. per sensor, Sensor Operating Environment -20° to 85°C (-4° to 185°F); 0 to 90% RH non-condensing*, Fittings ¼” NPT female thread, 17-4 PH stainless
Attributes
| Analogue Output Type | 4…20 mA; 0…5 V DC; 0…10 V DC |
| IP Degree of Protection | IP65 |
| Product or Component Type | sensor |
| Ambient Air Temperature for Operation | -10-50 °C |
| Burst Pressure | 250 psig (17 bar) |
| Product Certifications | CE |
| Controlled Fluid | water |
| Fitting Size | ⅛” NPT |
| Fitting Type | female |
| Location | plant room |
| Pressure Measurement Accuracy | range A/B: ± 1 % FS, range C: ± 1.5 % FS, range D: ± 2 % FS |
| Pressure Measurement Range | 0…5 psi (0…0.3 bar); 0…10 psi (0…0.7 bar); 0…25 psi (0…1.7 bar); 0…50 psi (0…3.5 bar) |
| Wiring Technique | 3-wire |
| Type of Measurement | differential pressure |
| Device Application | pump and compressor differential pressure; chiller differential pressure monitoring |
| Mounting Support | panel |
| Standards | EN 61000-6-1 |
| Relative Humidity | 0-90 % RH, non-condensing |
| (Us) Rated Supply Voltage | 15…30 V DC; 24 V AC |
| Local Signalling | red/green LED |
| Max Current Draw | 125 mA DC; 280 mA AC |
Specifications
| SKU | CS2543422 |
|---|---|
| MPN | PWXX03S |
| Alternate Part # | VER-PWXX03S |
