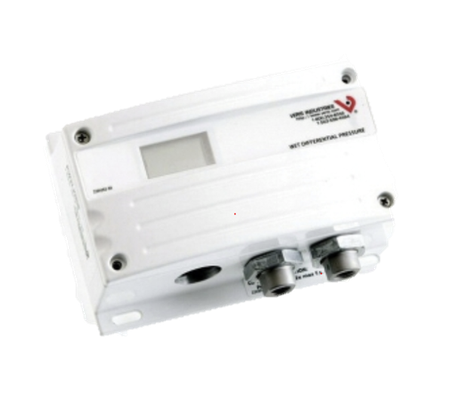

Veris PWLX05S

Name: Veris PWLX05S
Brand: Veris
SKU: CS1065105
Price: 439.81 USD
Availability: OutOfStock

SKU: CS1065105MPN: PWLX05SAlternate Part #: VER-PWLX05S

Differential Air Pressure Trans: For the monitoring of air ducts, filters and fans, SPD310-100/300/500/1000Pa

$439.81

Unit

Available on backorder

Quantity

remove

add

Product Details

Differential Air Pressure Trans: For the monitoring of air ducts, filters and fans, SPD310-100/300/500/1000Pa

Attributes

Sena Us Rated Supply Voltage	15…30 V DC 24 V AC
Sena Us Rated Supply Voltage 1	15…30 V DC 24 V AC
Sena Ambient Air Temperature For Operation	-10-50 °C
Sena Ambient Air Temperature For Operation 1	-10-50 °C
Sena Ambient Air Temperature For Operation 2	-10-50 °C
Sena Analogue Output Type	4…20 mA# #0…5 V DC# #0…10 V DC
Sena Burst Pressure	1250 psig (85 bar)
Sena Calibration Certificate	none
Sena Controlled Fluid	water
Sena Device Application	pump and compressor differential pressure# #chiller differential pressure monitoring
Sena Display Size	17 x 36 mm
Sena Fitting Size	⅛” NPT
Sena Fitting Type	female
Sena Ip Degree Of Protection	IP65
Sena Ip Degree Of Protection 1	IP65
Sena Ip Degree Of Protection 2	IP65
Sena Local Signalling	red/green LED
Sena Location	plant room
Sena Max Current Draw	125 mA DC 280 mA AC
Sena Mounting Support	panel
Sena Pressure Measurement Accuracy	range A/B: ± 1 % FS, range C: ± 1.5 % FS, range D: ± 2 % FS
Sena Pressure Measurement Range	0…25 psi (0…1.7 bar)# #0…50 psi (0…3.5 bar)# #0…100 psi (0…7 bar)# #0…250 psi (0…17 bar)
Sena Product Certifications	CE
Sena Product Certifications 1	CE
Sena Product Or Component Type	sensor
Sena Range Of Product	PW
Sena Relative Humidity	0-90 % RH, non-condensing
Sena Relative Humidity 1	0-90 % RH, non-condensing
Sena Standards	EN 61000-6-1
Sena Standards 1	EN 61000-6-1
Sena Standards 2	EN 61000-6-1
Sena Type Of Measurement	differential pressure
Sena Wiring Technique	3-wire
