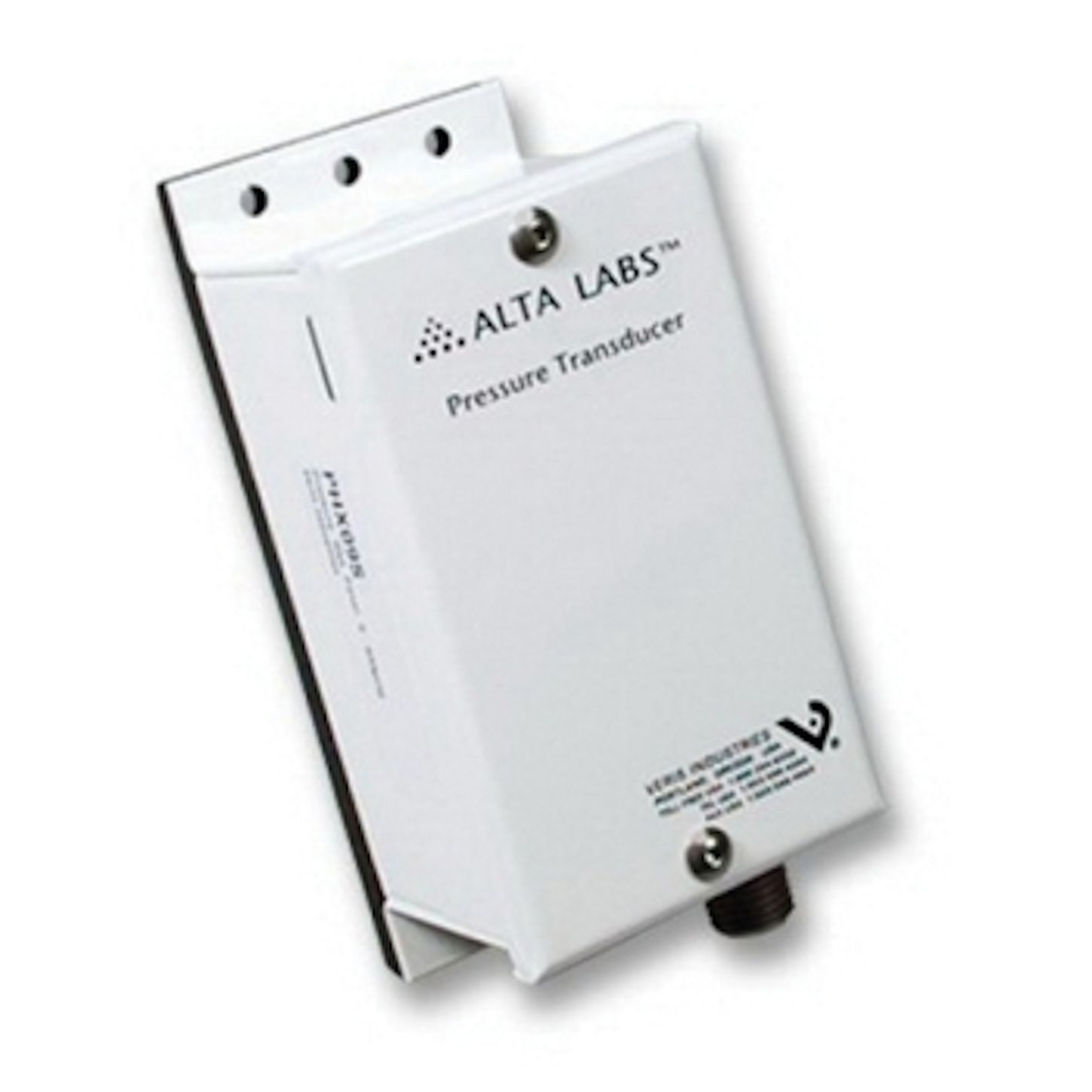

Veris PHX08S

Differential Air Pressure Trans: For the monitoring of air ducts, filters and fans, SPD310-100/300/500/1000Pa

1% Accuracy Digitally Controlled Gauge Pressure Transducer, 0 to 250 psig

• Application Zone : Plant Room
• Application : Pump and Compressor Monitoring, Gas Pressure, Energy and Water Management, Refrigerant Equipment
• Brand : Veris
• Burst Pressure : 1,250 psig (85 bar)
• Calibration Certificate : No
• Dimension Depth : 2.2 In (56 mm)
• Dimension Height : 5.1 In (129 mm)
• Dimension Width : 2.5 In (56 mm)
• Display Type : None
• Electrical Wiring : 3-wires
• Enclosure Material : Powder Coated Steel
• Fitting Material : Stainless Steel
• Fitting Size : ¼ In NPT
• Fitting Type : Male
• LED Indicator Type : Red and Green
• Measurement Type : Gauge Pressure
• Medium : Water
• Model : PHX08S
• Mounting : Panel
• Operating Humidity : 0 - 90% RH, non-condensing
• Operating Temperature : 14 - 130 °F (-10 - 55 °C)
• Output Specifications : 4 - 20 mA, 0 - 5 V, 0 - 10 V
• Outputs : Analog output
• Pressure Measurement Accuracy : ±1% of F.S.
• Pressure Measurement Range : 0 - 250 psi (0 - 17 bar)
• Product Type : Sensor
• Range : PH
• Supply Voltage AC Nominal : 24 VAC
