Veris EP2121S
SKU: CS2541672MPN: EP2121SAlternate Part #: VER-EP2121S
Differential Air Pressure Trans: For the monitoring of air ducts, filters and fans, SPD310-100/300/500/1000Pa
$240.26
Unit5+ Units Available at Factory - Ships Same/Next Business Day
Product Details

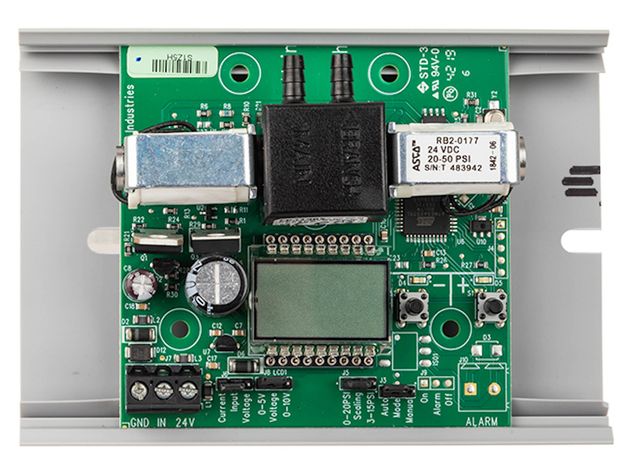

Electropneumatic Transducer
- Selectable 3-15/0-20 psi Output* Manual Mode Alarm* Vent on Power Fail* Standard
Attributes
| Product or Component Type | sensor |
| Ambient Air Temperature for Operation | -4-60 °C |
| Product Certifications | CE |
| Controlled Fluid | dry air; inert gas |
| Fitting Size | 4.3 mm (0.18”) |
| Fitting Type | male |
| Location | plant room |
| Pressure Measurement Accuracy | ± 1 % FS |
| Pressure Measurement Range | 3…15 psi (0.2…1 bar); 0…20 psi (0…1.35 bar) |
| Wiring Technique | 3-wire |
| Type of Measurement | electropneumatic transducer |
| Device Application | pneumatic actuated dampers; pneumatic actuators |
| Mounting Support | panel |
| Standards | EN 61000-6-1:2007; EN 61000-6-3:2007 |
| Relative Humidity | 10-90 % RH, non-condensing |
| (Us) Rated Supply Voltage | 24 V AC; 24 V DC; 24…30 V AC |
| Analogue Input tType | 4…20 mA; 0…5 V; 0…10 V |
| Local Signalling | red/green LED |
| Safety Function | vent on power fail |
Specifications
| SKU | CS2541672 |
|---|---|
| MPN | EP2121S |
| Alternate Part # | VER-EP2121S |
