Veris EP2110S2

Differential Air Pressure Trans: For the monitoring of air ducts, filters and fans, SPD310-100/300/500/1000Pa

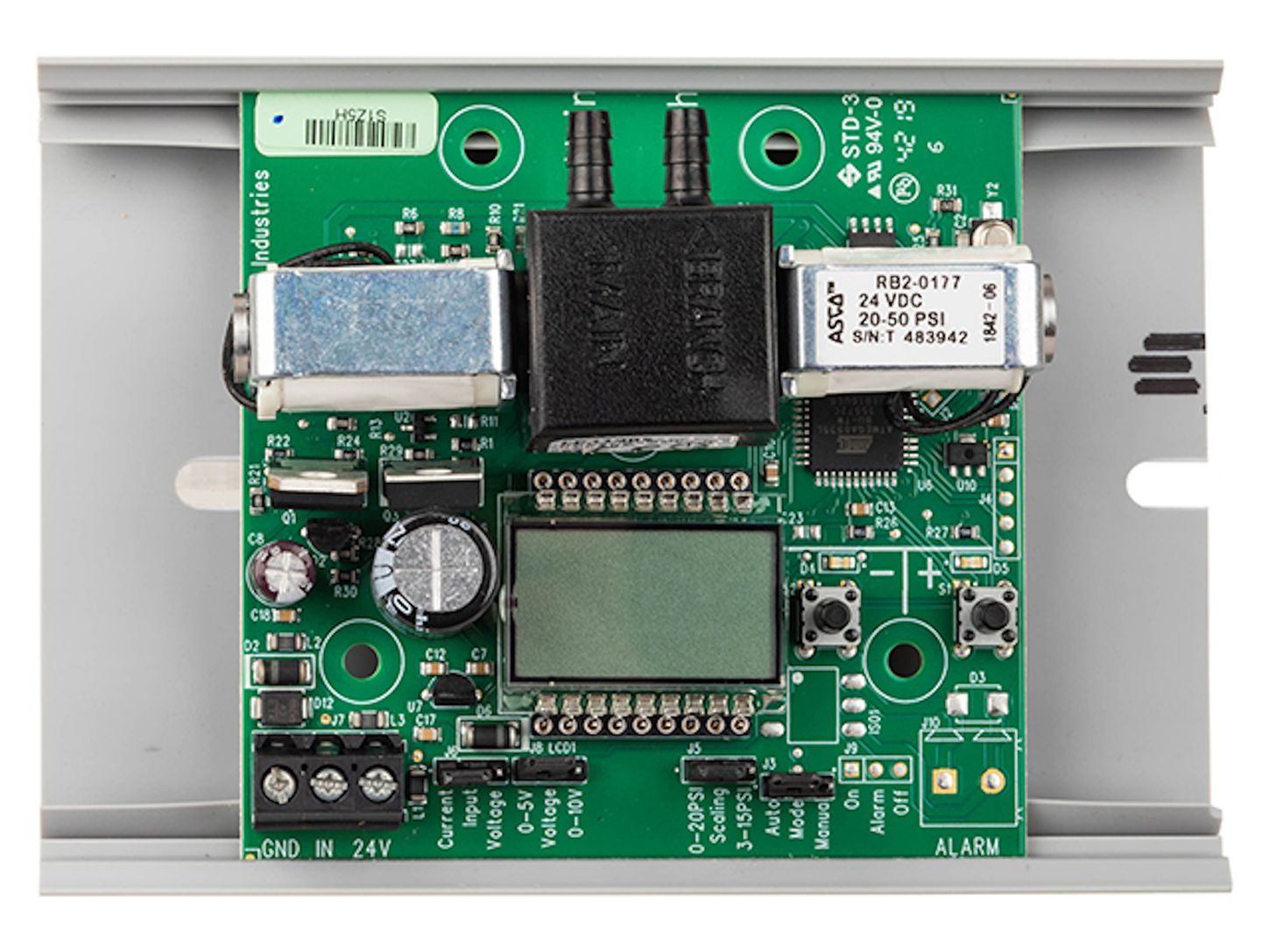

The EP2 series electro pneumatic pressure transducer uses microcontrolled poppet valve technology for highly accurate pressure sensing in multiple applications. The poppet valves consume no air, eliminating unnecessary air losses in the system and allowing for stable and reliable operation. The EP2 comes installed on standard SnapTrack. An LCD display and LED indicators make it easy to read system status at a glance.- Provided equipment Cable ties : Door sensor, Installation guide, Lock handles, Proximity card, Proximity reader, Rack mounting brackets, User manual. - Application Zone : Plant Room - Application : Pneumatic Actuated Dampers, Pneumatic Actuators - Dimension Depth : 1.8 In(46 mm) - Dimension Height : 3.5 In (89 mm) - Dimension Width : 3.3 In (84 mm) - Display Type : None - Electrical Wiring : 3-wires - Fail Safe : Vent on power fail - Fitting Material : Brass - Fitting Size : 0.18 IN (4.3 mm) - Fitting Type : Male - Input Specifications : 4 - 20 mA | 0 - 5 V | 0 - 10 V - LED Indicator Type :Red and Green - Measurement Type : Electropneumatic Transducers - Medium  : Dry Air, Inert Gas - Mounting : Panel - Operating Humidity : 10 - 90% RH, non-condensing - Operating Temperature : 25 - 140 °F (-4 - 60 °C) - Output Specifications : None - Pressure Measurement Accuracy : ±1% of F.S. - Pressure Measurement Range : 3 - 15 psi (0.2 - 1 bar) | 0 - 20 psi (0 - 1.35 bar) - Product Type : Sensor - Supply Voltage AC Nominal : 24 VAC - Supply Voltage AC Range : 24 - 30 VAC - Supply Voltage DC Nominal : 24 VDC
