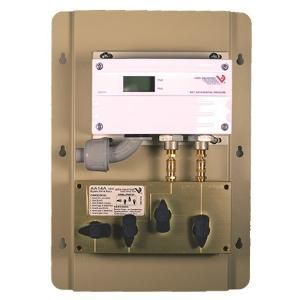

Veris PW2LN04S
SKU: CS2543378MPN: PW2LN04SAlternate Part #: VER-PW2LN04S
Differential Air Pressure Trans: For the monitoring of air ducts, filters and fans, SPD310-100/300/500/1000Pa
$647.53
UnitAvailable on backorder
Product Details
Differential Pressure Transducer
- Wet Media* 4-20 mA, 2-Wire* NEMA 4* LCD* NIST* US Standard* Operating Range: 0-100 psi/6.89 bar
Attributes
| Analogue Output Type | 4…20 mA |
| IP Degree of Protection | IP65 |
| Product or Component Type | sensor |
| Ambient Air Temperature for Operation | -10-55 °C |
| Burst Pressure | 500 psig (34 bar) |
| Product Certifications | CE |
| Controlled Fluid | water |
| Fitting Size | ⅛” NPT |
| Fitting Type | female |
| Location | plant room |
| Pressure Measurement Accuracy | range A/B/C: ± 1 % FS, range D: ± 2 % FS |
| Pressure Measurement Range | 0…10 psi (0…0.7 bar); 0…20 psi (0…1.4 bar); 0…50 psi (0…3.5 bar); 0…100 psi (0…7 bar) |
| Wiring Technique | 2-wire (loop powered) |
| Type of Measurement | differential pressure |
| Calibration Certificate | NIST |
| Device Application | pump and compressor differential pressure; chiller differential pressure monitoring |
| Mounting Support | panel |
| Standards | EN 61000-6-1 |
| Relative Humidity | 0-90 % RH, non-condensing |
| (Us) Rated Supply Voltage | 12…24 V DC |
| Display Size | 17 x 36 mm |
| Max Current Draw | 29 mA |
Specifications
| SKU | CS2543378 |
|---|---|
| MPN | PW2LN04S |
| Alternate Part # | VER-PW2LN04S |
