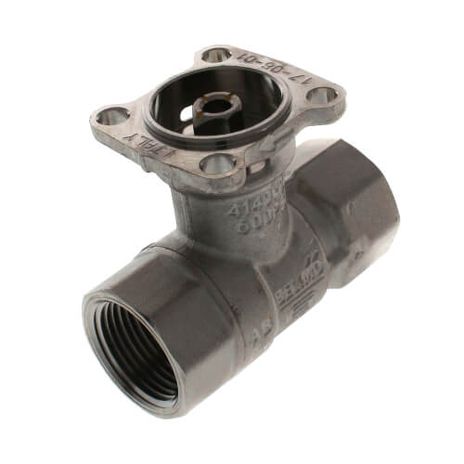

Belimo B220B
SKU: CS2529010MPN: B220B
Characterized Control Valve (CCV), ¾”, 2-way, Cv 14
Product Details
This valve is typically used in air handling units on heating or cooling coils, and fan coil unit heating or cooling coils. Some other common applications include Unit Ventilators, VAV box re-heat coils and bypass loops. This valve is suitable for use in a hydronic system with variable flow.
Attributes
| Valve Size | 0.75” [20] |
| Cv | 14.0 |
| Flow Pattern | 2-way |
| Valve Trim | Chrome plated brass |
| Close-Off Pressure ∆Ps | 200 psi |
| Pressure Independent | NO |
| Fluid | chilled or hot water, up to 60% glycol |
| Controllable Flow Range | 75° |
| Pipe Connection | NPT female ends |
| Fluid Temp Range (Water) | 0…250°F [-18…120°C] |
| Cv Range [Gpm] | 7.6…16 |
| Pipe Connection Type | internal thread |
| Kvs Range [M³/H] | 6.6…14 m³/h |
| Flow Characteristic | equal percentage |
| Servicing | maintenance-free |
| Valve Body | Nickel-plated brass body |
| Stem | nickel-plated brass |
| Seat | PTFE |
| Stem Seal | EPDM (lubricated) |
| Characterized Disc | No Disc (full flow) |
| Body Pressure Rating | 600 psi |
| O-Ring | EPDM (lubricated) |
| Ball | chrome plated brass |
Specifications
| SKU | CS2529010 |
|---|---|
| MPN | B220B |
