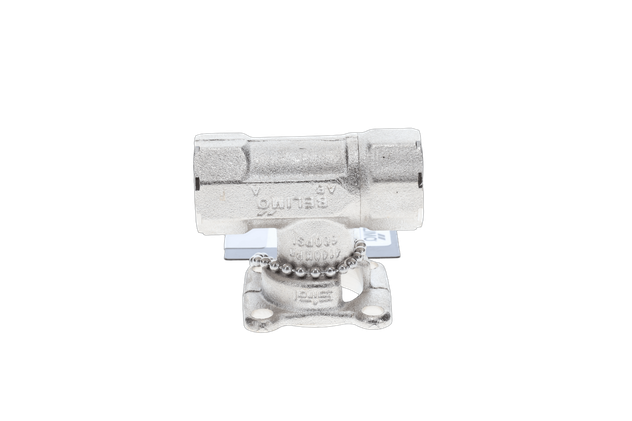

Belimo B219B
SKU: CS1763663MPN: B219B
Characterized Control Valve (CCV), ¾”, 2-way, Cv 10
Product Details
2-Way CCV Ball Valve, Chrome Plated Brass Ball and Brass Stem, ¾”, Cv 10, No Motorized Actuator - Control Valve Only
Attributes
| Valve Size | 0.75” [20] |
| Cv | 10.0 |
| Flow Pattern | 2-way |
| Valve Trim | Chrome plated brass |
| Close-Off Pressure ∆Ps | 200 psi |
| Pressure Independent | NO |
| Fluid | chilled or hot water, up to 60% glycol |
| Controllable Flow Range | 75° |
| Pipe Connection | NPT female ends |
| Fluid Temp Range (Water) | 0…250°F [-18…120°C] |
| Cv Range [Gpm] | 7.6…16 |
| Pipe Connection Type | internal thread |
| Kvs Range [M³/H] | 6.6…14 m³/h |
| Flow Characteristic | equal percentage |
| Servicing | maintenance-free |
| Valve Body | Nickel-plated brass body |
| Stem | nickel-plated brass |
| Seat | PTFE |
| Stem Seal | EPDM (lubricated) |
| Characterized Disc | TEFZEL® |
| Body Pressure Rating | 600 psi |
| O-Ring | EPDM (lubricated) |
| Ball | chrome plated brass |
Specifications
| SKU | CS1763663 |
|---|---|
| MPN | B219B |
