Turck B 5136-0
SKU: CS2496452MPN: B 5136-0Alternate Part #: U6578-1
U6578-1 - FIELD WIREABLE,M8PICOFAST
$28.29
UnitAvailable on backorder
Product Details

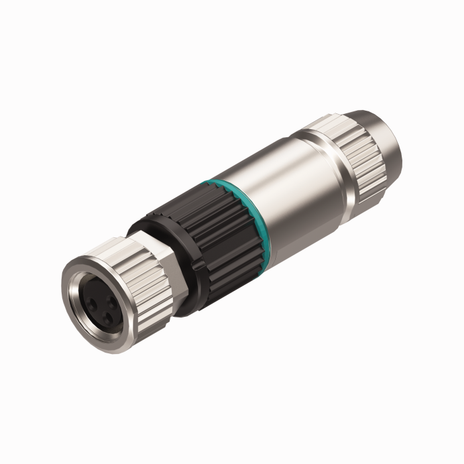

Actuator and Sensor Field Wireable
M8 × 1 Female Connector, Straight
- M8 female connector, straight, 3-pin
- Metal coupling nut
- Cable feedthrough 4.0…5.1 mm
- Penetration technology
- Protection class IP67
- 3 Pins
- Insulation displacement Wire Termination
- Plastic Housing
Attributes
| Acceptable Cable Diameter | 4…5.1 mm |
| Approvals | RoHS |
| Connection Mode | Insulation displacement terminal |
| Core Cross Section Clamping Ability | 18 mm² |
| Coupling Nut Screw Material | Brass, CuZn, Nickel-plated |
| Current | 4 A |
| Customs Tariff Number | 85366990990.0000 |
| Housing Material | Die-cast Zinc, PBT |
| Number Of Contacts | 3 |
| Voltage | 32 V |
Specifications
| SKU | CS2496452 |
|---|---|
| MPN | B 5136-0 |
| Alternate Part # | U6578-1 |
