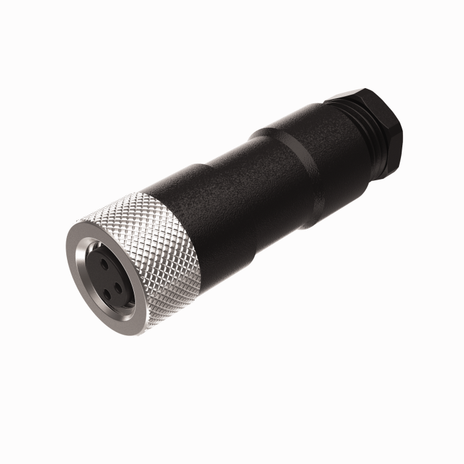

Turck B 5131-0
SKU: CS2496449MPN: B 5131-0Alternate Part #: U6500
U6500 - FIELD WIREABLE,M8PICOFAST
$24.94
UnitAvailable on backorder
Product Details
Actuator and Sensor Field Wireable

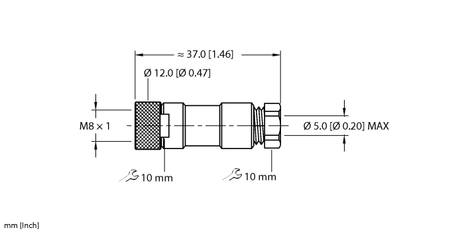

M8 × 1 Female Connector, Straight
- 3 Pins
- Solder Wire Termination
- Plastic Housing
Attributes
| Acceptable Cable Diameter | 3…5 mm |
| Approvals | RoHS |
| Connection Mode | Solder contact |
| Core Cross Section Clamping Ability | 24 mm² |
| Coupling Nut Screw Material | Brass, CuZn, Nickel-plated |
| Current | 4 A |
| Housing Material | Plastic, PBT |
| Number Of Contacts | 3 |
Specifications
| SKU | CS2496449 |
|---|---|
| MPN | B 5131-0 |
| Alternate Part # | U6500 |
