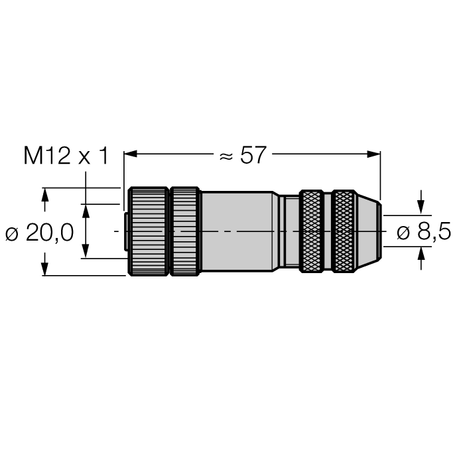

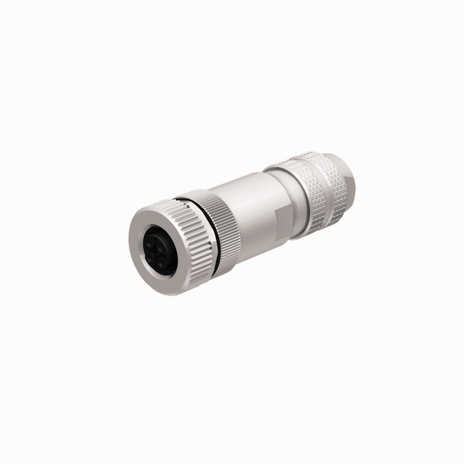

Turck BMWS8151-8.5
SKU: CS2475158MPN: BMWS8151-8.5Alternate Part #: 6904721UPC/EAN: 4047101000702
6904721 - FIELD WIREABLE,M12EUROFAST
$50.44
UnitAvailable on backorder
Product Details
Field-Wireable Connector
Female Connector M12 × 1, Straight
- For use in PROFIBUS-DP applications
- Up to 12 Mbps
- Shielding via iris spring connection
- B-coding
- Metal housing
- Screw-clamp terminal
- 5-pin
- M18 × 1 metric screw-in thread
- Cable diameter 6.0…8.5 mm
Attributes
| Acceptable Cable Diameter | 6…8.5 mm |
| Application | Data |
| Connection Mode | Screw/clamp connection |
| Connector A | Female, M12 × 1, Straight, B-code |
| Core Cross Section Clamping Ability | 0.14…0.75 mm² |
| Coupling Nut Screw Material | Die-cast Zinc, GD-Zn, Nickel-plated |
| Current | 4 A |
| Customs Tariff Number | 85366990990.0000 |
| Ecl Ss Code V5 1 4 | 27279201 -/- Connectivity (accessories sensors) |
| Fieldbus Protocol | PROFIBUS-DP |
| Housing Material | Die-cast Zinc, GD-Zn, nickel-plated |
| Mounting Thread | M18 × 1 |
| Number Of Contacts | 5 |
| Voltage | 125 V |
Specifications
| SKU | CS2475158 |
|---|---|
| MPN | BMWS8151-8.5 |
| Alternate Part # | 6904721 |
| UPC/EAN | 4047101000702 |
You may also like

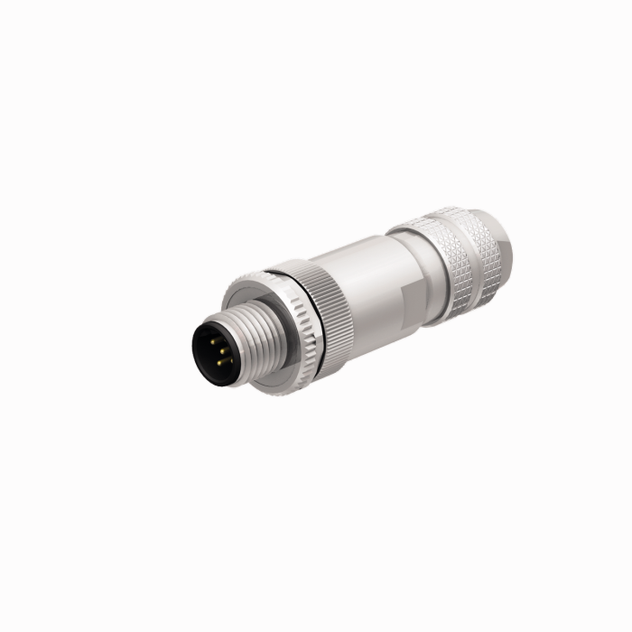

Turck BMSWS8151-8.5
$50.44Unit

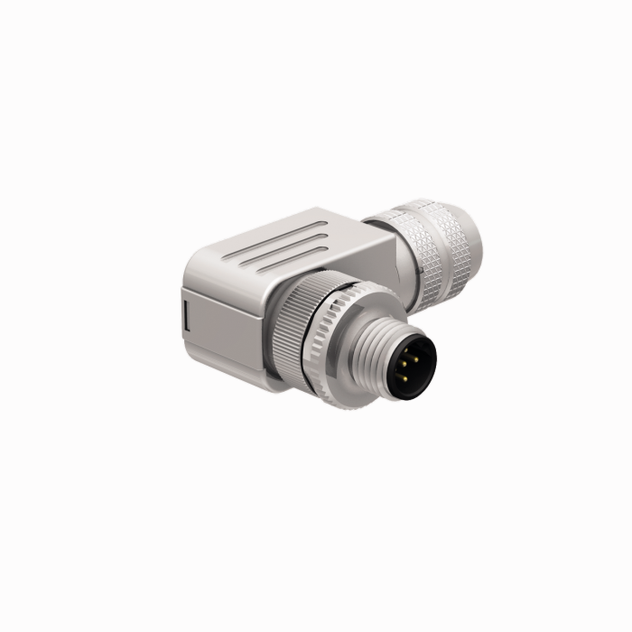

Turck BMSWS8251-8.5
$50.44Unit

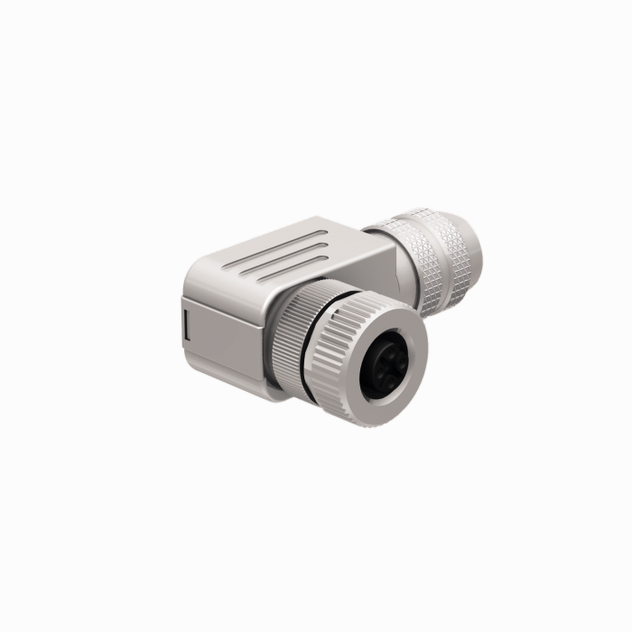

Turck BMWS8251-8.5
$50.44Unit
Turck BMWS 8251-8.5/PDP
$60.11Unit
Turck BMWS 8151-8.5/PDP
$55.22UnitTurck BMSWS 8251-8.5/PDP
$55.22UnitTurck BMSWS 8151-8.5/PDP
$55.22Unit

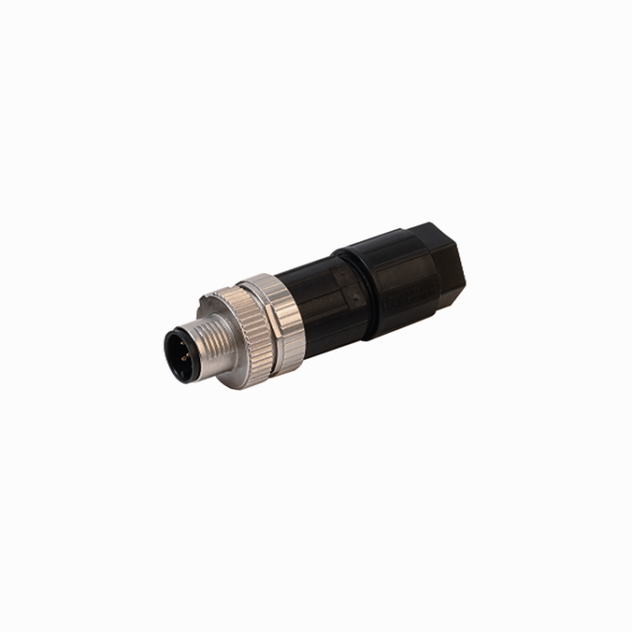

Turck FW-ERSPM0426-SA-P-0408
$29.51Unit
Turck RK46PT-S-0
$32.96Unit
Turck RK56PL-S-0
$39.44Unit

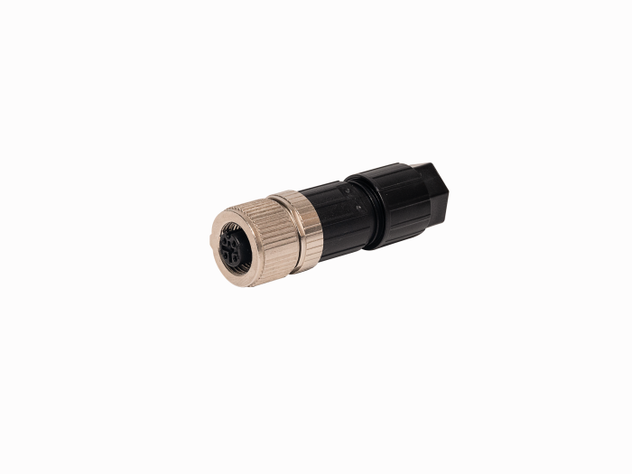

Turck FW-ERKPM0426-SA-P-0408
