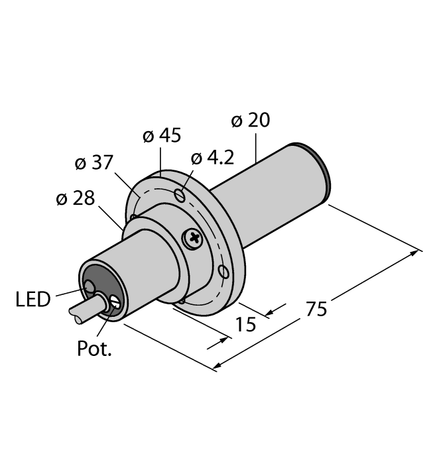

Turck FCS-K20-AP8X
SKU: CS2432809MPN: FCS-K20-AP8XAlternate Part #: 6870702UPC/EAN: 4047101175066
6870702 - CAL (IMM), COMP-MON, GEN., GEN
$368.43
UnitAvailable on backorder
Product Details
Flow Monitoring
Immersion Sensor with Integrated Processor
- Flow sensor for gaseous media
- Calorimetric principle
- Adjustment via potentiometer
- Mounting flange, plastic, included
- Status display via 2-color LED
- Plastic sensor housing
- 3‐wire DC, 19.2…28.8 VDC
- NO contact, PNP output
- Cable device
Attributes
| Ambient Temperature | 0…+60 °C |
| Approvals | UL |
| Customs Tariff Number | 90261021000.0000 |
| Design | Immersion |
| Detection Type | Calorimetric |
| Ecl Ss Code V5 1 4 | 27273190 -/- Flow meter (not classified) |
| Electrical Connection | Cable |
| Function | Flow monitoring |
| Housing Material | Plastic, PBT-GF30-V0 |
| Medium | gases |
| Medium Temperature | -20…+70 °C |
| Operating Voltage | 19.2…28.8 VDC |
| Output Function | NO contact, PNP |
| Process Connection | PVC flange (included in delivery) |
| Protection Class | IP67 |
| Sensor Material | Plastic |
Specifications
| SKU | CS2432809 |
|---|---|
| MPN | FCS-K20-AP8X |
| Alternate Part # | 6870702 |
| UPC/EAN | 4047101175066 |
You may also like

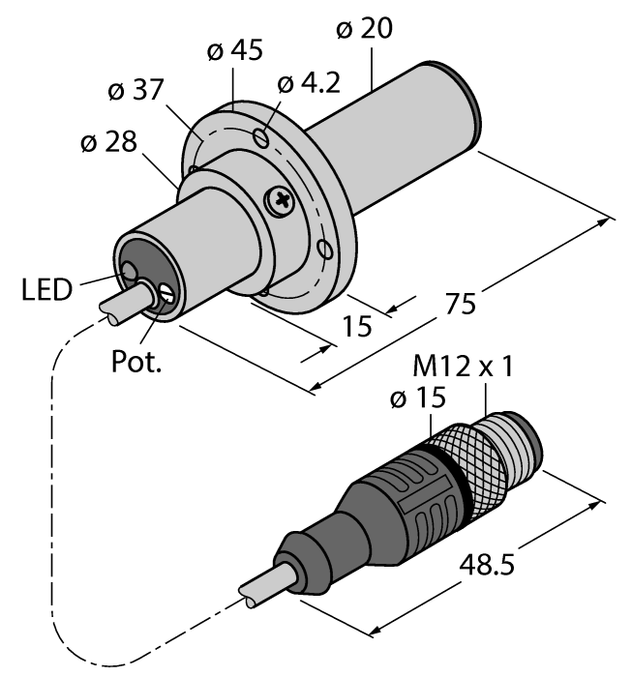

Turck FCS-K20-AP8X-H1141/3M
$421.60Unit
Turck FCS-M18-AP8X
$415.56Unit
Turck FCS-K20-LIX
$418.47UnitTurck FCS-K20-LIX-0.2-RS4T
$433.79Unit
Turck FCS-M18-AP8X/D041
$528.04Unit

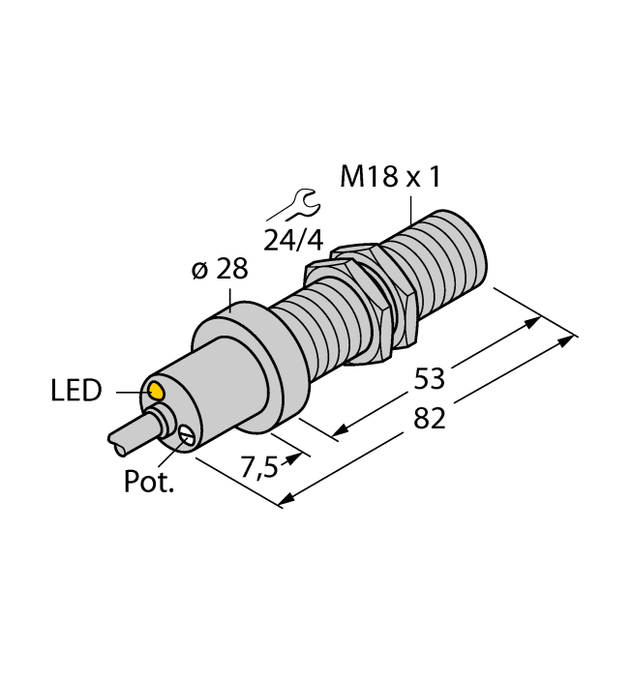

Turck FCS-M18-AP8X/DO45
$419.07Unit

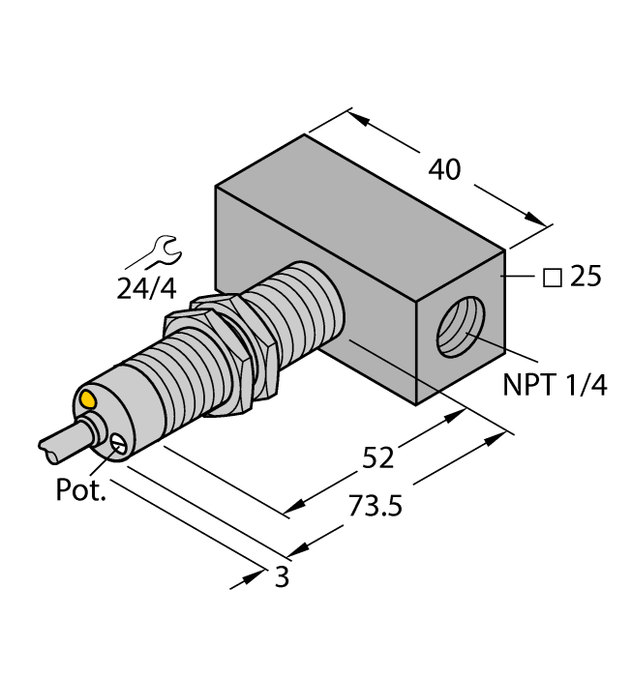

Turck FCS-M18-AP8X/D087
$528.04UnitTurck FCS-M18-AP8X-0.2-RS4T
$467.88Unit
Turck FCS-GL1/2A2P-AP8X-H1141/A
$698.06Unit

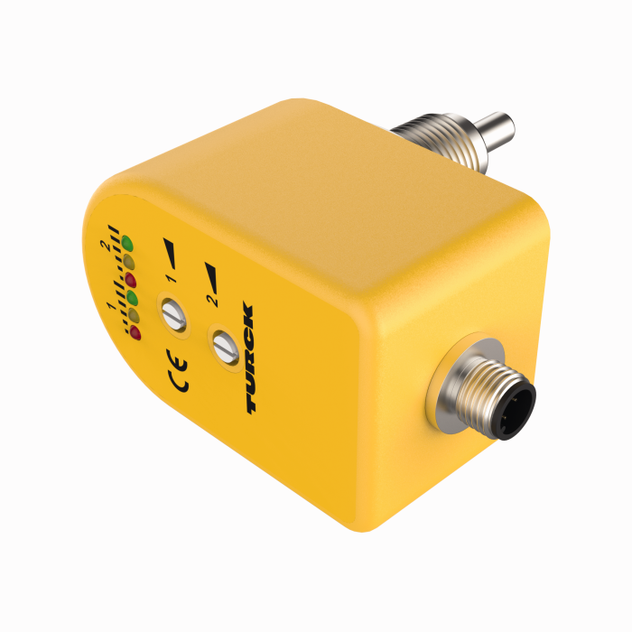

Turck FCS-N1/2A4P-AP8X-H1141
$711.60Unit

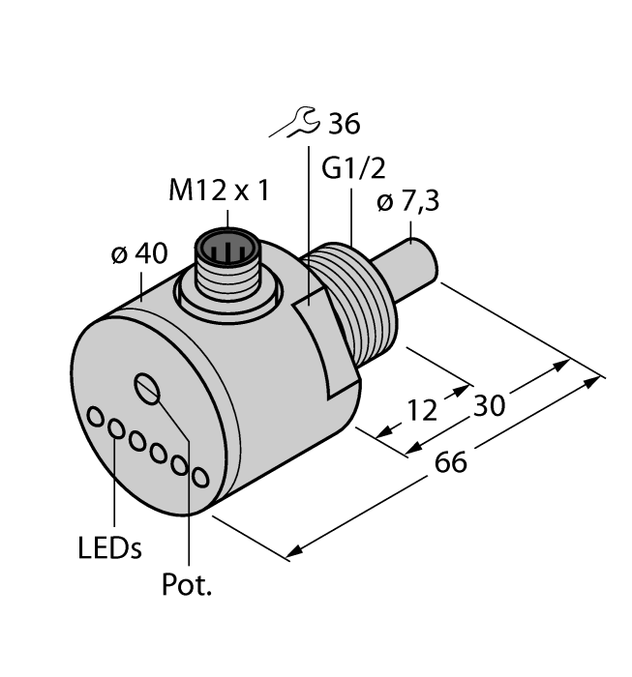

Turck FCS-G1/2DY-AP8X-H1141
