All ProductsTurck

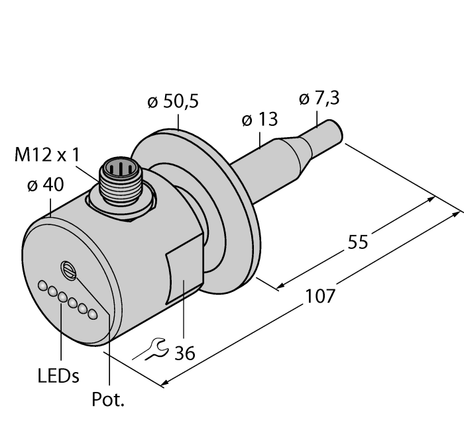

Turck FCS-50A4-AP8X-H1141/D014

SKU: CS2420862MPN: FCS-50A4-AP8X-H1141/D014Alternate Part #: 6872025UPC/EAN: 4047101176261

6872025 - CAL (IMM), COMP-MON, GEN., GEN

Turck FCS-50A4-AP8X-H1141/D014
$1,490.36
Unit
Available on backorder
remove
add

Product Details

Flow Monitoring

Immersion Sensor with Integrated Processor

  • Sensor for liquid media
  • Calorimetric principle
  • Adjustment via potentiometer
  • Status indicated via LED chain
  • Sensor, stainless steel A4 (1.4404)
  • Mechanical Connection: Tri-Clamp
  • DC 3-wire, 19.2…28.8 VDC
  • NO contact, PNP output
  • Connector device, M12 × 1

Attributes

Ambient Temperature -20…+80 °C
Approvals UL
Customs Tariff Number 90261021000.0000
Design Immersion
Detection Type Calorimetric
Ecl Ss Code V5 1 4 27273190 -/- Flow meter (not classified)
Electrical Connection Connector, M12 × 1
Function Flow monitoring
Housing Material Stainless steel, 1.4404 (AISI 316L)
Medium liquids
Medium Temperature 0…+80 °C
Operating Voltage 19.2…28.8 VDC
Output Function NO contact, PNP
Process Connection Tri-Clamp 1 ½″
Protection Class IP67
Sensor Material Stainless steel

Specifications

SKUCS2420862
MPNFCS-50A4-AP8X-H1141/D014
Alternate Part #6872025
UPC/EAN4047101176261
