Eaton E50NN2

Name: Eaton E50NN2
Brand: Eaton
SKU: CS233205
Availability: InStock

SKU: CS233205MPN: E50NN2UPC/EAN: 782113453989

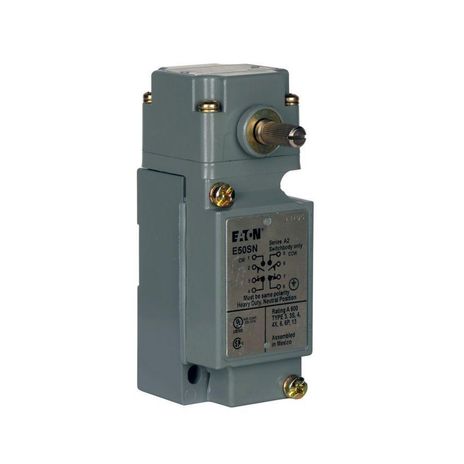

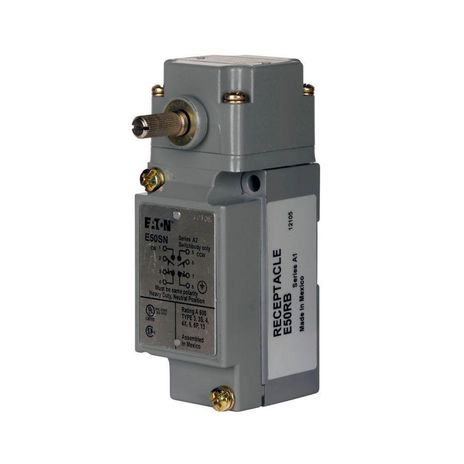

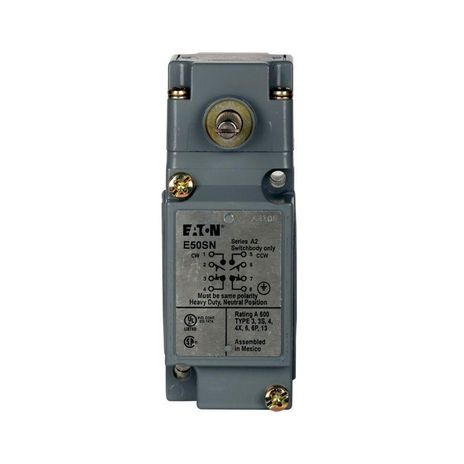

Eaton E50 NEMA heavy duty plug-in limit switch

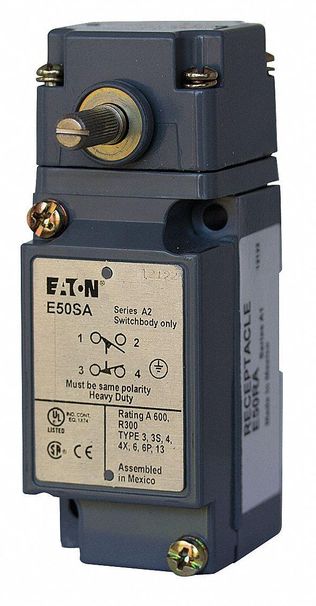

Eaton E50AL1, E50AR1, E50BM1, E50BR1, E50NN1, E50NN1SPL, E50NN2

Eaton E50AH1, E50AH16P, E50AL1, E50AL16P, E50AM16P, E50AR1, E50AR16P, E50AS1, E50AS16P, E50AS2, E50AS3, E50AS36P, E50AT1, E50AT16P, E50AT2

4 in stock

Product Details

Eaton Special Purpose Limit Switch, E50 Heavy Duty Plug In, Neutral position 15° travel, Screw Terminals, 10A at 12 Vac, 1A at 125 Vdc, 2NO-2NC, 14° to 201°F (-10° to 94°C)

Attributes

Connection	Screw terminal
Contact Configuration	2 NO-2 NC
Contact Rating	10A at 12 Vac, 1A at 125 Vdc
Enclosure Material	Die cast zinc
Environmental Rating	NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67
Maximum Ac Current	10 A
Maximum Dc Current	1 A
Operating Temperature Max	201 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	14 FAH
Operating Temperature Min Uom	FAH
Series	E50 heavy duty plug in
Switch Type	Neutral position 15 ° travel
