Eaton E57SAL12T111SD

Name: Eaton E57SAL12T111SD
Brand: Eaton
SKU: CS225824
Availability: OutOfStock

SKU: CS225824MPN: E57SAL12T111SDUPC/EAN: 782113505015

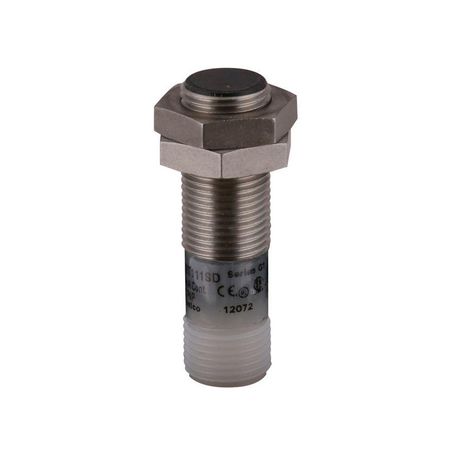

Eaton E57 inductive proximity sensor

Eaton E57SAL12A2E, E57SAL12A2EA, E57SAL12A2S5, E57SAL12A2SA, E57SAL12T110, E57SAL12T111SD, E57SAL18A2E, E57SAL18A2EA, E57SAL18A2S4, E57SAL18A2S5, E57SAL18A2SA, E57SAL18T111, E57SAL18T111E5

Product Details

Short Barrel Premium+ Inductive Proximity Sensor, E57, Straight, 12 mm, Shielded, 360° viewable LED, M12, 250 mA at 6-48 Vdc, 4 pin, \<3% sensing range, NO PNP open collector, 6-48 Vdc

Attributes

Accuracy	< 3% sensing range
Actuator Function	Shielded
Connection	M12
Contact Configuration	NO PNP open collector
Contact Rating	250 mA at 6-48 Vdc
Enclosure Material	Stainless steel
Environmental Rating	NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP67
Input Voltage	6-48 Vdc
Led Indicator	360 ° viewable LED
Maximum Dc Current	250 mA
Number Of Pins	4.0000
Operating Temperature Max	158 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-13 FAH
Operating Temperature Min Uom	FAH
Protection	Auto reset
Series	E57
Size	12 mm
Temperature Rating	-13 to 158 °F
Type	E57
