All ProductsDwyer

Dwyer DHII-010

SKU: CS2225966MPN: DHII-010Alternate Part #: 102127-09

DHII-010 0-100” WC

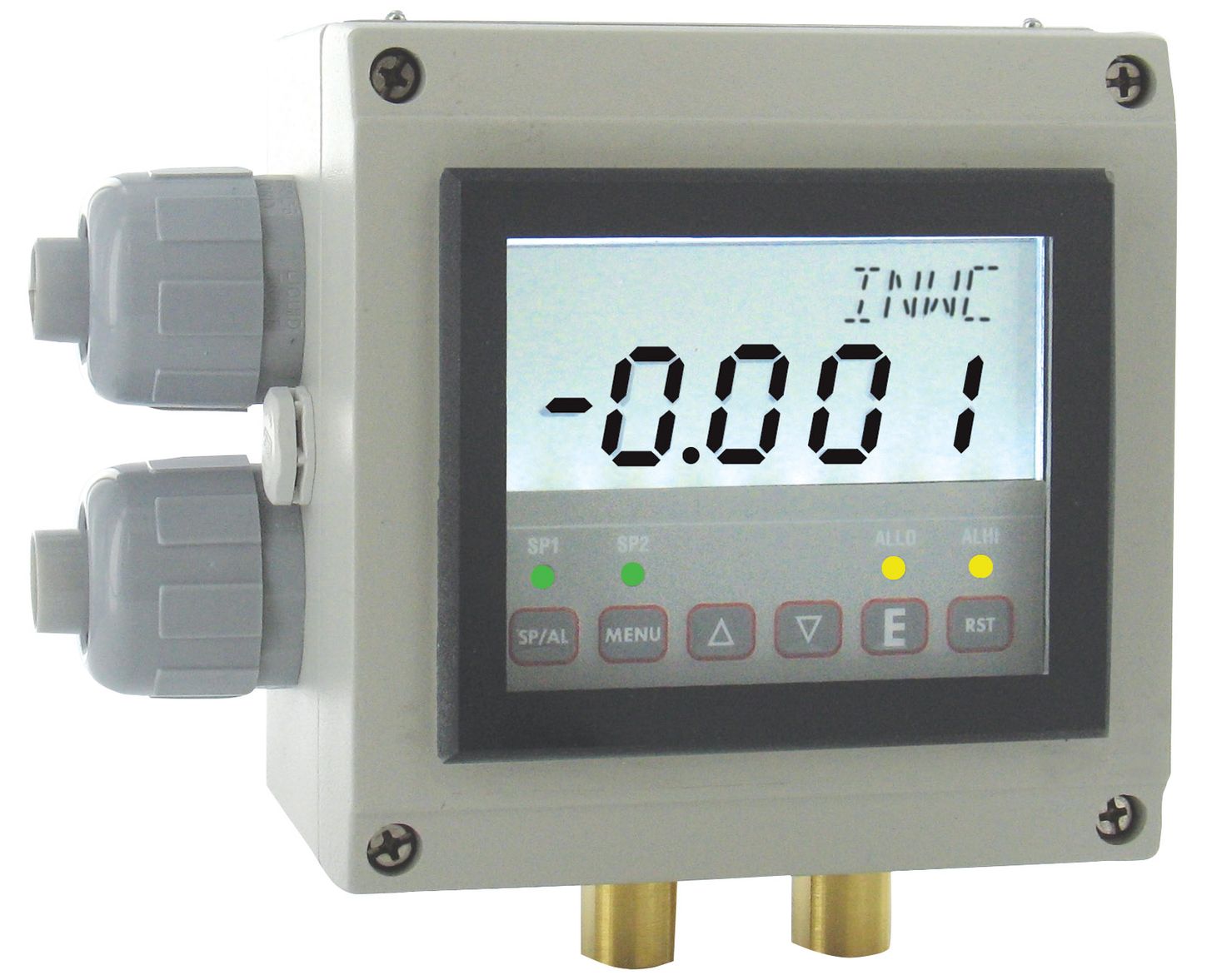

Dwyer DHII-002, DHII-004, DHII-007, DHII-008, DHII-009, DHII-010, DHII-012, DHII-014, DHII-015, DHII-016, DHII-017, DHii-006
$1,119.58
Unit
Available on backorder
remove
add

Product Details

Differential pressure controller, selectable engineering units: 100.0” w.c., 8.333 ft w.c., 2540 mm w.c., 254.0 cm w.c., 3.613 psi, 7.356” Hg, 186.8 mm Hg, 249.1 mbar, 24.91 kPa, 249.1 hPa, 57.80 oz/in². NOTE: velocity \& volumetric flow not available.

Attributes

Accuracy ±0.5% at 77°F (25°C) including hysteresis and repeatability (after 1 hour warmup).
Commodity Code 1902
Compensated Temperature Limits 32 to 140°F (0 to 60°C).
Compliance CE, UL.
Display 4 digit backlit LCD 0.6” height. LED indicators for set point and alarm status.
Electrical Connection Euro type removable terminal blocks with watertight conduit fittings for ½” watertight conduit.
Electrical Rating 8 amps at 240 VAC resistive.
Enclosure Rating Designed to meet NEMA 4 (IP66).
Housing Material Aluminum, glass.
Mounting Orientation Mount unit in horizontal plane.
Output Signal 4-20 mA DC into 900 Ω max.
Power Consumption Low voltage power = 24 VDC - 130 mA max; High voltage power = 100 to 240 VAC, 132 to 240 VDC - 7 VA max.
Power Requirement High voltage power = 100 to 240 VAC, 50 to 400 Hz or 132 to 240 VDC; Low voltage power = 24 VDC ±20%.
Pressure Limit Ranges x0089¤ 2.5 in w.c. = 2 psi; 5”: 5 psi; 10”: 5 psi; 25”: 5 psi; 50”: 5 psi, 100”: 9 psi.
Process Connection ⅛” female NPT.
Response Time 250 ms (dampening set to 1).
Serial Communication Modbus® RTU, RS485, 9600 Baud.
Service Air and non-combustible, compatible gases.
Set Point Adjustment Adjustable via keypad on face.
Stability < ±1% per year.
Switch Type 2 SPDT relays.
Thermal Effect 0.020%/°F (0.036/°C) from 77°F (25°C).
Wetted Material Consult factory.
Zero Span Adjustments Accessible via menus.

Specifications

SKUCS2225966
MPNDHII-010
Alternate Part #102127-09
