Eaton E57LAL18T111E

Name: Eaton E57LAL18T111E
Brand: Eaton
SKU: CS214370
Availability: OutOfStock

SKU: CS214370MPN: E57LAL18T111EUPC/EAN: 782113743059

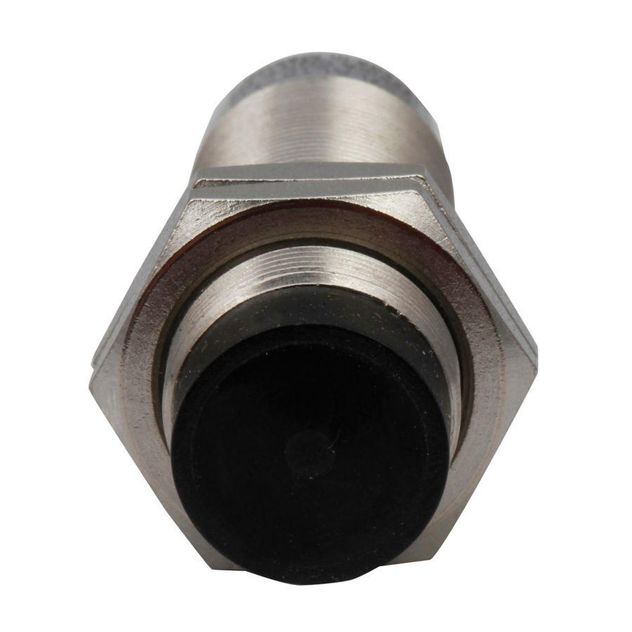

Eaton E57 inductive proximity sensor

Eaton E57LAL18T111-Z, E57LAL18T111E, E57LAL18T111E3, E57LAL18T111E4, E57LAL18T111E5, E57LAL18T111E8, E57LAL18T111ED, E57LAL18T111EP, E57LAL18T111S3, E57LAL18T111S4, E57LAL18T111S5, E57LAL18T111SD, E57LAL18T111SP, E57LAL18T111SPY1

Product Details

Eaton Premium+ Inductive Proximity Sensor, E57, 8 mm range, Straight, 18 mm, Unshielded, 360° viewable LED, 6.6 ft, 500 mA at 6-30 Vdc, \<3%, PVC, NO PNP open collector, 6-48 Vdc

Attributes

Accuracy	< 3%
Actuator Function	Unshielded
Cable Type	Polyvinyl Chloride (PVC)
Contact Configuration	NO PNP open collector
Contact Rating	500 mA at 6-30 Vdc
Enclosure Material	303 stainless steel
Environmental Rating	NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP67, IP69K
Input Voltage	6-48 Vdc
Led Indicator	360 ° viewable LED
Maximum Dc Current	500 mA
Operating Temperature Max	158 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-13 FAH
Operating Temperature Min Uom	FAH
Protection	Auto reset
Series	E57
Type	Premium+ Inductive Proximity Sensor
