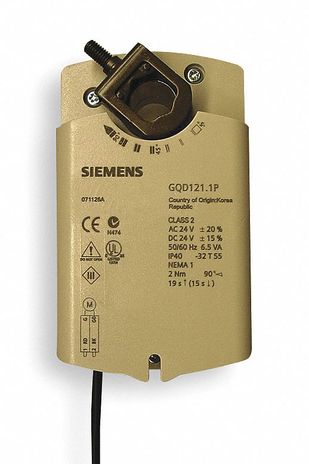

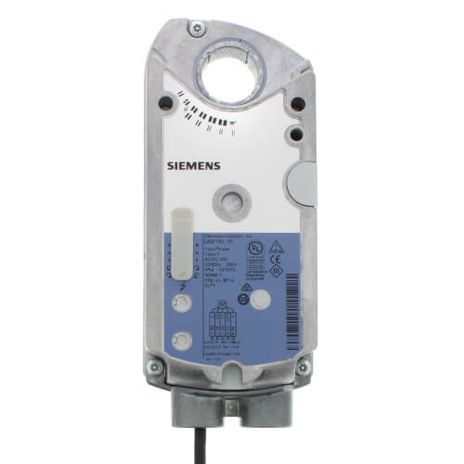

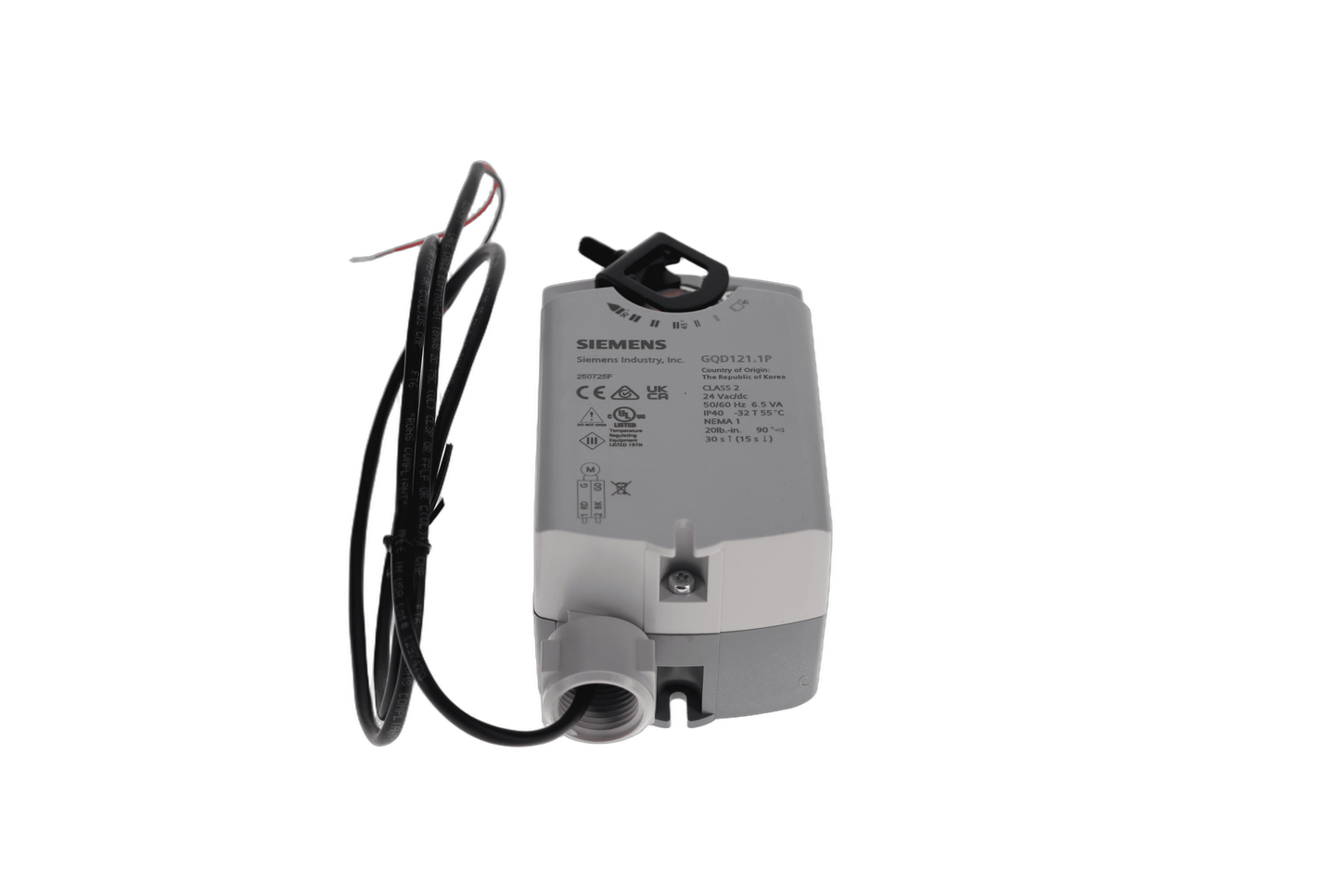

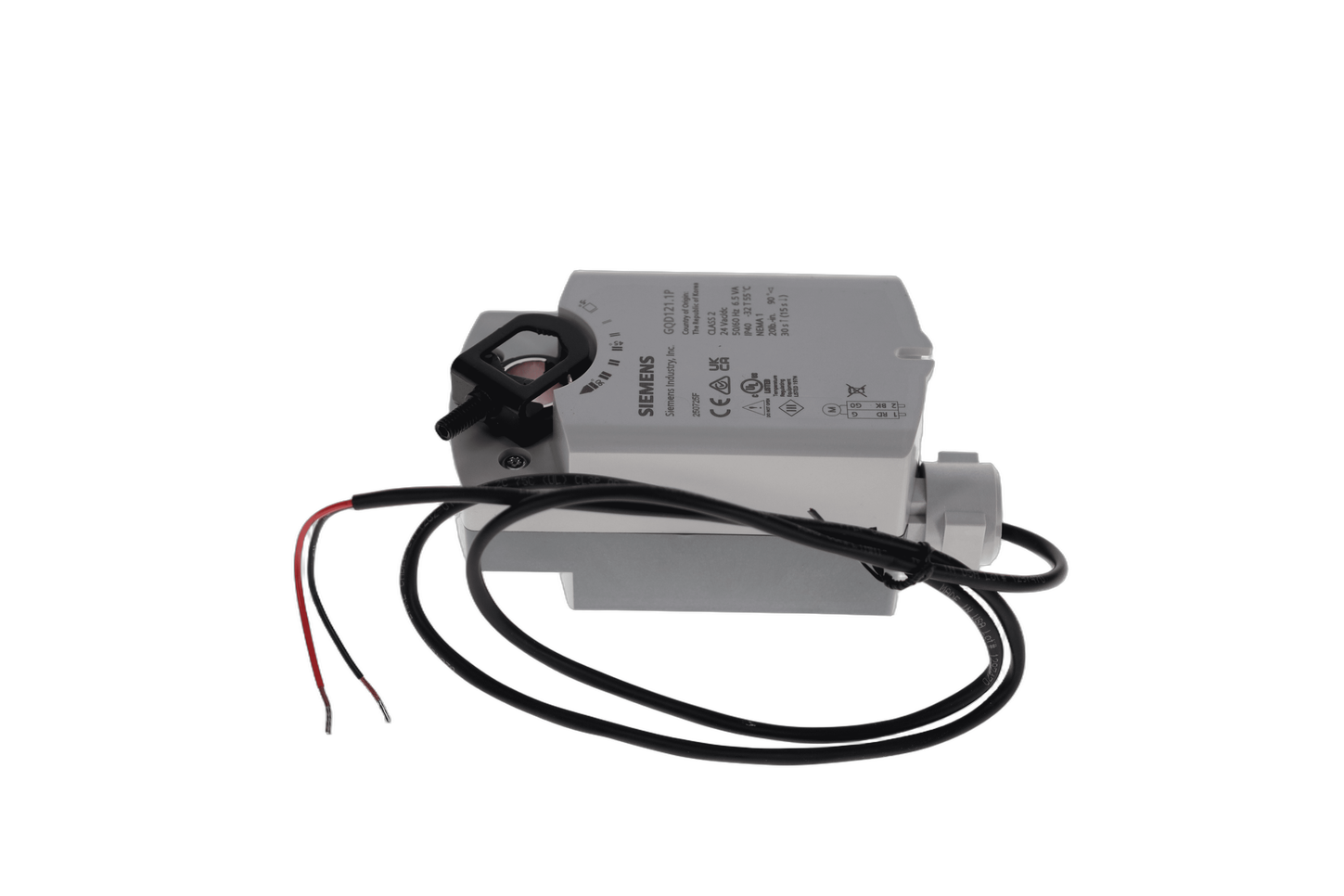

Siemens GQD121.1P
SKU: CS2006880MPN: GQD121.1PUPC/EAN: 4034106341152
Spring Return Rotary, 20 lb-in, 24Vac/dc, 2-pos Control, 30sec Run, Plenum
$149.02
Unit7 in stock
Product Details
OpenAir™ GQD Series Electric Damper Actuator, rotary, spring return, 20 lb-in (2 Nm), 24 Vac/dc, 2-position control, 30 sec run time, plenum rated
Attributes
| Actuation Style | Rotary |
| Actuator Type | Spring return |
| Ambient Humidity Operation | 95 % r.h. |
| Ambient Temperature Operation | -32…55 °C; -25…130 ºF |
| Auxiliary Switch | No |
| Connection Cable | 18 AWG |
| Control Or Fire Smoke Type | Control Damper |
| Control Signal | 2-position |
| Fail Safe | Yes |
| Frequency | 50/60 Hz |
| Material Housing | NEMA 1, plenum-rated rugged plastic, IP40 |
| Operating Voltage | 19.2…28.8 V24 V#AC/DC |
| Plenum Or Standard Rating | Plenum |
| Position Feedback | No |
| Positioning Time | Open:30 s;Close:15 s |
| Power Consumption | Running: 6.5 VA /4.5 W;Holding: 4 VA / 2.5 W |
| Supply Voltage | 24 VAC/DC |
| Torque | 20 lb-in |
Specifications
| SKU | CS2006880 |
|---|---|
| MPN | GQD121.1P |
| UPC/EAN | 4034106341152 |
