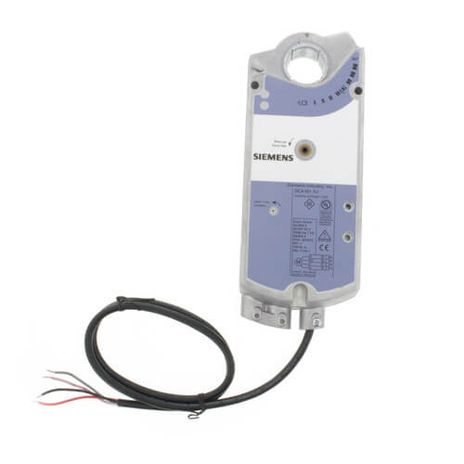

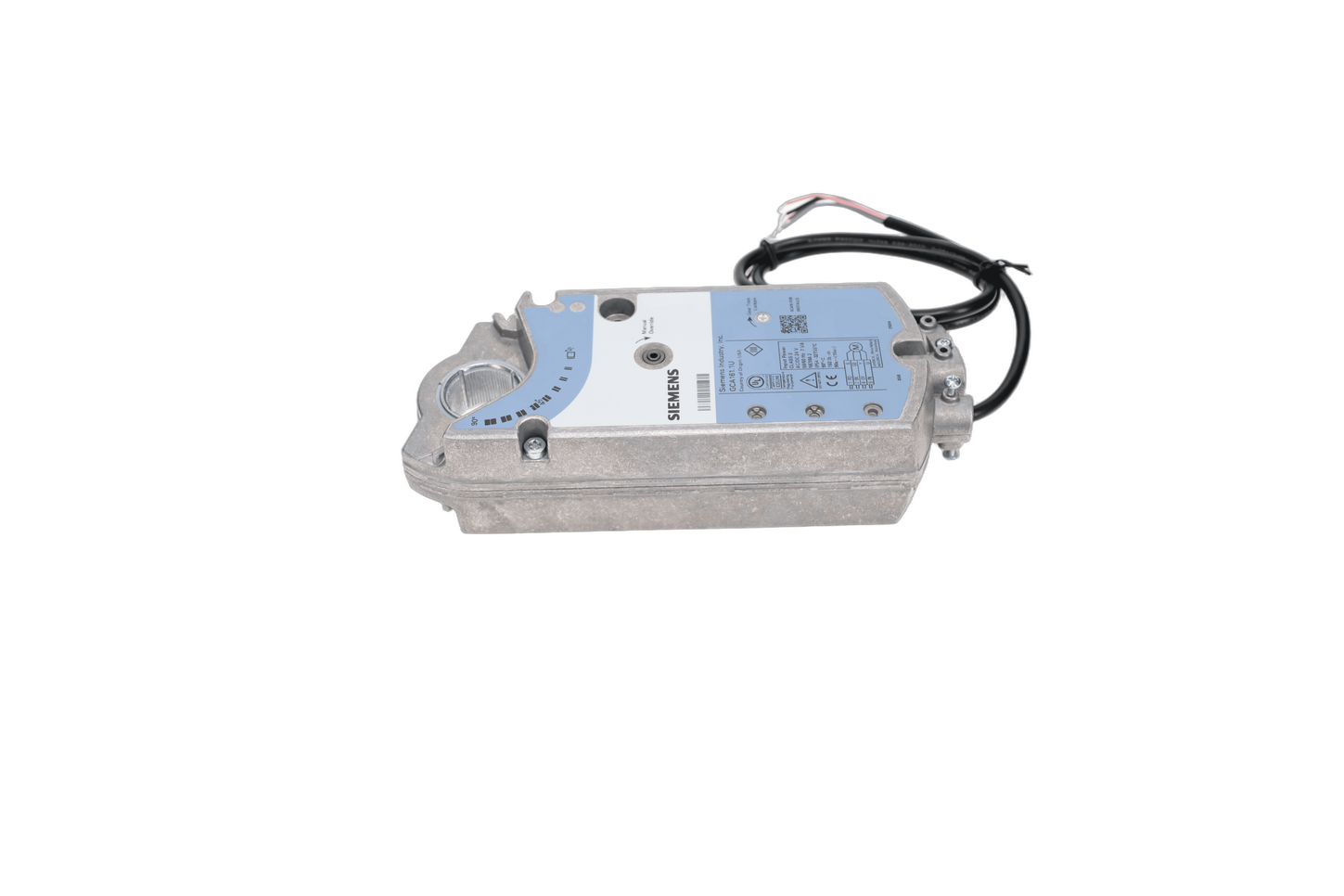

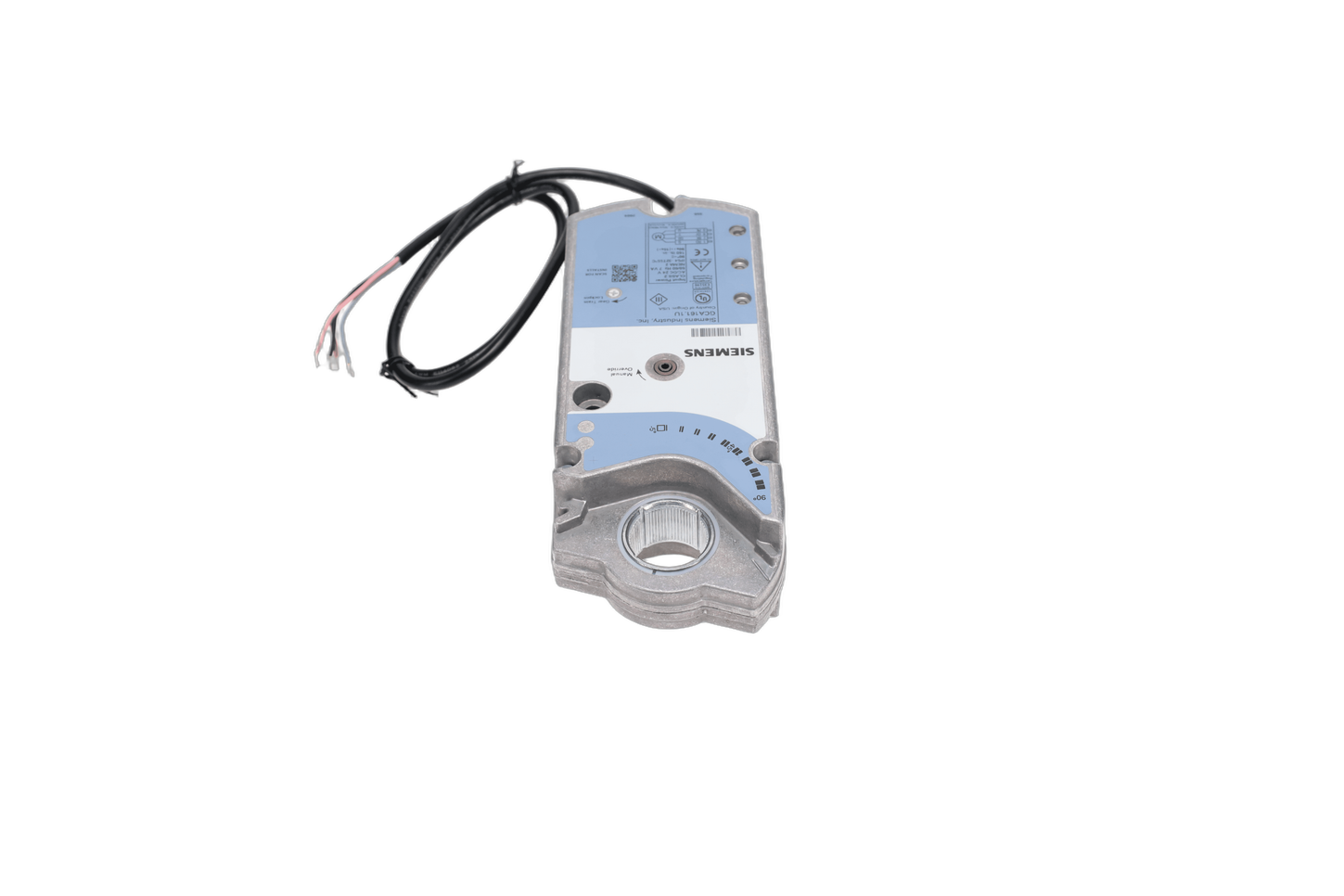

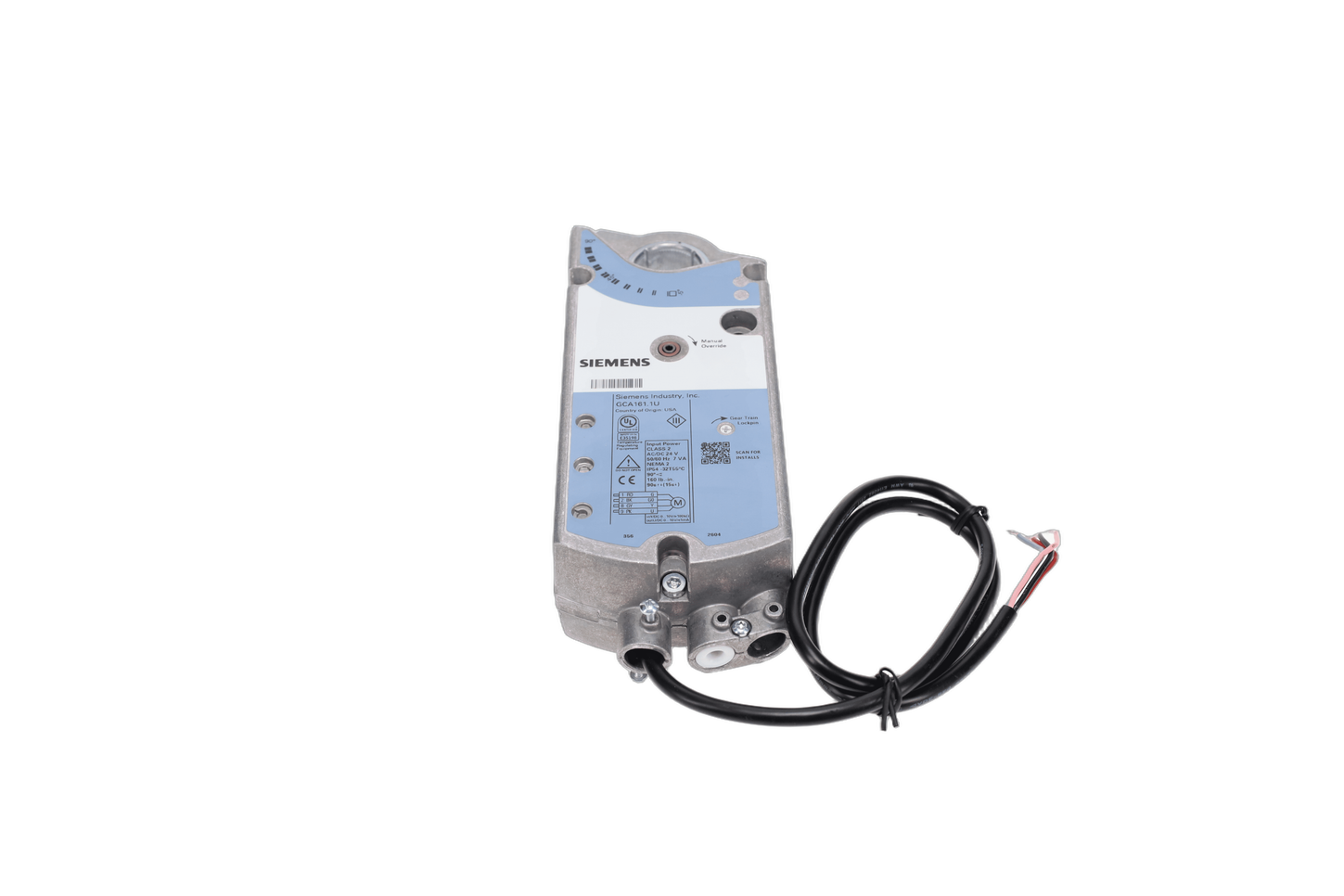

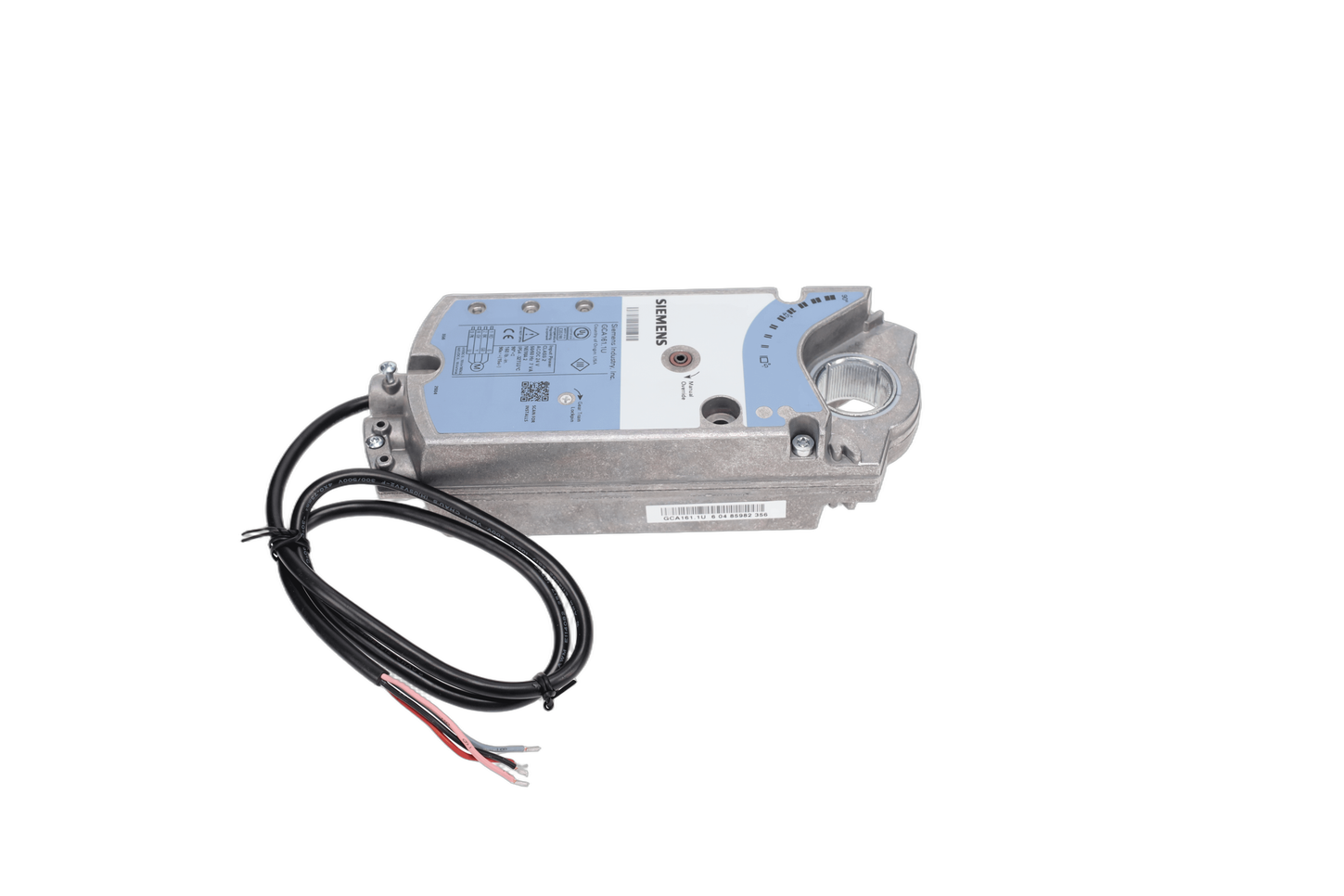

Siemens GCA161.1U
SKU: CS890187MPN: GCA161.1UUPC/EAN: 7612914017840
Spring Return 160 lb-in (18Nm), 24Vac/dc, 0-10 Vdc Control, 90sec Run, Feedback
$358.36
Unit10+ Units Available at Factory - Ships Same/Next Business Day
Product Details
OpenAir™ GCA Series Electric Damper Actuator, rotary, spring return, 160 lb-in (18 Nm), 24 Vac/dc, 0 to 10 Vdc control, 90 sec run time
Attributes
| Actuation Style | Rotary |
| Actuator Type | Spring return |
| Ambient Humidity Operation | 95 % r.h. |
| Ambient Temperature Operation | -32…55 °C; -25…130 ºF |
| Auxiliary Switch | No |
| Connection Cable | 18 AWG |
| Control Or Fire Smoke Type | Control Damper |
| Control Signal | 0…10 Vdc |
| Fail Safe | Yes |
| Frequency | 50/60 Hz |
| Material Housing | NEMA 2, die-cast aluminum alloy enclosure, IP54 according to EN 60 529 |
| Operating Voltage | 7…28.8 V24 V#AC/DC |
| Plenum Or Standard Rating | Standard |
| Position Feedback | Yes |
| Positioning Time | Open:90 s;Close:15 s |
| Power Consumption | Running: 7 VA / 5 W, Holding: 5 VA / 3 W |
| Supply Voltage | 24 VAC/DC |
| Torque | 160 lb-in |
Specifications
| SKU | CS890187 |
|---|---|
| MPN | GCA161.1U |
| UPC/EAN | 7612914017840 |
