Turck BIM-NST-AP6X-V1131
SKU: CS1763498MPN: BIM-NST-AP6X-V1131Alternate Part #: 4685800UPC/EAN: 4047101000412
TRANS., RECT., DC, CON. M8
$143.78
Unit12 in stock
Product Details
Magnetic Field Sensor
For Pneumatic Cylinders
- Plastic, PA12-GF30
- Magnetic-inductive sensor
- DC 3‐wire, 10…30 VDC
- NO contact, PNP output
- Male connector, M8 x 1
Attributes
| Ambient Temperature | -25…+70 °C |

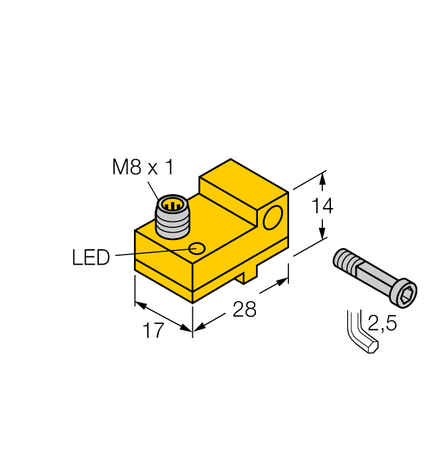

| Construction Size | 28 x 17 x 14 mm, NST |
| Customs Tariff Number | 85365019900.0000 |
| Cylindrical Design | T-groove cylinder, Dovetail groove cylinder, Profile cylinder |
| Design | Rectangular |
| Ecl Ss Code V5 1 4 | 27270104 -/- Magnetic inductive proximity switch |
| Electrical Connection | Connector, M8 × 1 |
| Housing Material | Plastic, PA12-GF30 |
| Operating Voltage | 10…30 VDC |
| Output Function | NO contact, PNP |
| Protection Class | IP67 |
Specifications
| SKU | CS1763498 |
|---|---|
| MPN | BIM-NST-AP6X-V1131 |
| Alternate Part # | 4685800 |
| UPC/EAN | 4047101000412 |
