Square D ZB5AW0B45

Name: Square D ZB5AW0B45
Brand: Square D
SKU: CS1677651
Availability: OutOfStock

SKU: CS1677651MPN: ZB5AW0B45

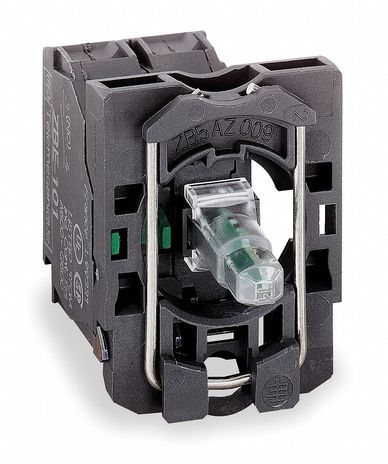

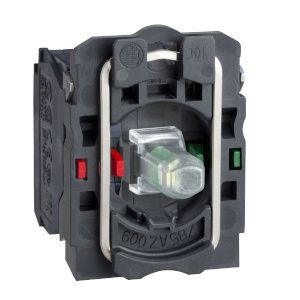

Light block with body fixing collar, Harmony XB5, plastic, red, integral LED, 24V AC DC, 1NO+1NC

Product Details

Red Light Block with Body/Fixing Collar with Integral LED 24V 1NO+1NC

Ambient Air Temperature For Operation	-40-70 °C
Ambient Air Temperature For Operation 1	-40-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Bulb Base	integral LED
Contact Operation	slow-break
Contacts Material	silver alloy (Ag/Ni)
Contacts Type And Composition	1 NO + 1 NC
Contacts Usage	standard
Current Consumption	18 mA
Device Presentation	basic sub-assemblies
Device Short Name	ZB5
Fixing Collar Material	plastic
Head Type	standard
Light Source	protected LED
Light Source Colour	red
Mechanical Durability	5000000 cycles
Product Certifications	BV# #CSA# #UL listed# #GL# #DNV# #LROS (Lloyds register of shipping)
Product Or Component Type	complete body/contact assembly and light block
Protective Treatment	TH
Range Of Product	Harmony XB5
Sale Per Indivisible Quantity	1.0000
Signalling Type	steady
Signalling Type 1	steady
Standards	UL 508# #EN/IEC 60947-1# #EN/IEC 60947-5-4# #JIS C8201-5-1# #EN/IEC 60947-5-1# #CSA C22.2 No 14# #JIS C8201-1
Terminals Description Iso N 1	(11-12)NC# #(13-14)NO
