Square D ZB4BW0B35

Name: Square D ZB4BW0B35
Brand: Square D
SKU: CS1652788
Availability: OutOfStock

SKU: CS1652788MPN: ZB4BW0B35

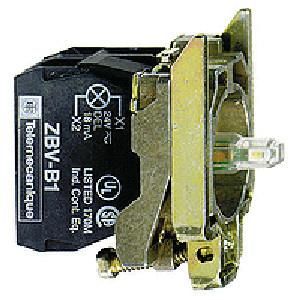

Light block with body fixing collar, Harmony XB4, metal, green, integral LED, 24V AC DC, 1NO+1NC

Product Details

Green Light Block with Body/Fixing Collar with Integral LED 24V 1NO+1NC

Ambient Air Temperature For Operation	-40-70 °C
Ambient Air Temperature For Operation 1	-40-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Bulb Base	integral LED
Contact Operation	slow-break
Contacts Material	silver alloy (Ag/Ni)
Contacts Type And Composition	1 NO + 1 NC
Contacts Usage	standard
Current Consumption	18 mA
Device Presentation	basic sub-assemblies
Device Short Name	ZB4
Fixing Collar Material	zamak
Head Type	standard
Light Source	protected LED
Light Source Colour	green
Mechanical Durability	5000000 cycles
Product Certifications	LROS (Lloyds register of shipping)# #CSA# #GL# #BV# #UL listed# #DNV
Product Or Component Type	complete body/contact assembly and light block
Protective Treatment	TH
Range Of Product	Harmony XB4
Sale Per Indivisible Quantity	1.0000
Signalling Type	steady
Signalling Type 1	steady
Standards	UL 508# #EN/IEC 60947-5-1# #CSA C22.2 No 14# #EN/IEC 60947-1# #EN/IEC 60947-5-5# #JIS C8201-5-1# #EN/IEC 60947-5-4# #JIS C8201-1
Terminals Description Iso N 1	(11-12)NC
