Square D 9001KP35LGG31

Name: Square D 9001KP35LGG31
Brand: Square D
SKU: CS1671308
Price: 121.58 USD
Availability: OutOfStock

SKU: CS1671308MPN: 9001KP35LGG31UPC/EAN: 785901032786

Pilot light, Harmony 9001K, metal, glass, fresnel lens, green, 30mm, LED green, 24...28V

$121.58

Unit

Available on backorder

Quantity

remove

add

Product Details

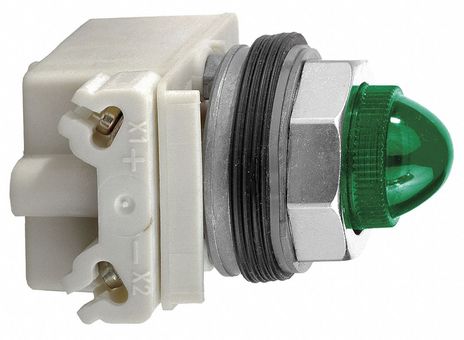

Harmony 9001K Pilot Light

Mounting Diameter: 30mm* Light Block Supply: Direct* Light Source: Green LED* Rated Insulation Voltage: 250V* Degree of Protection: NEMA 1, 2, 3, 3R, 4, 6, 12, 13

Ambient Air Temperature For Operation	-25-70 °C
Ambient Air Temperature For Operation 1	-25-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Bezel Material	chromium plated metal
Bulb Base	BA 9s
Cap Operator Or Lens Colour	green
Device Short Name	9001K
Mounting Diameter	30 mm
Operating Position	any position
Product Certifications	NEMA# #UL 508
Product Or Component Type	pilot light
Protective Treatment	TC
Range Of Product	Harmony 9001K
Shape Of Screw Head	cross slotted
Shape Of Signaling Unit Head	round
Standards	EN/IEC 60947-5-1# #JIS C 852# #EN/IEC 60947-5-4# #UL 508# #CSA C22.2 No 14# #EN/IEC 60947-1# #JIS C8201-5-1# #JIS C8201-1
