Square D 9001KT35LYA31

Name: Square D 9001KT35LYA31
Brand: Square D
SKU: CS4810029
Availability: OutOfStock

SKU: CS4810029MPN: 9001KT35LYA31UPC/EAN: 785901539032

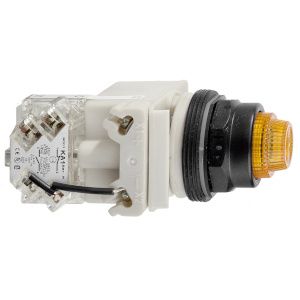

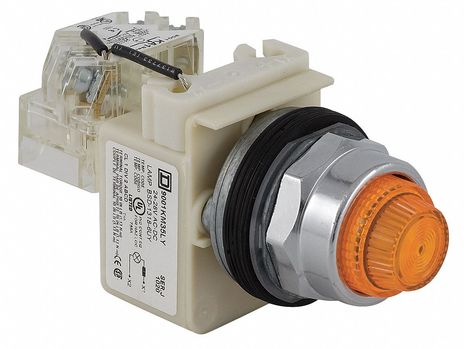

Push-to-test pilot light, Harmony 9001K, metal, polycarbonate, fresnel, amber, 30mm, LED yellow, 24-28V

Product Details

PILOT LIGHT 120VAC 30MM TYPE K +OPTIONS

Ambient Air Temperature For Operation	-25-70 °C
Ambient Air Temperature For Operation 1	-25-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Bezel Material	chromium plated metal
Bulb Base	BA 9s
Contact Operation	standard
Contacts Material	silver alloy contacts
Contacts Type And Composition	1 NO
Device Presentation	complete product
Device Short Name	9001K
Light Source	LED
Mechanical Durability	5000000 cycles
Mounting Diameter	30 mm
Operating Position	any position
Product Certifications	NEMA# #UL 508
Product Or Component Type	illuminated push to test push-button
Protective Treatment	TC
Range Of Product	Harmony 9001K
Shape Of Screw Head	cross slotted
Shape Of Signaling Unit Head	octagonal
Standards	EN/IEC 60947-5-4# #EN/IEC 60947-1# #CSA C22.2 No 14# #UL 508# #JIS C8201-5-1# #JIS C 852# #EN/IEC 60947-5-1# #JIS C8201-1
