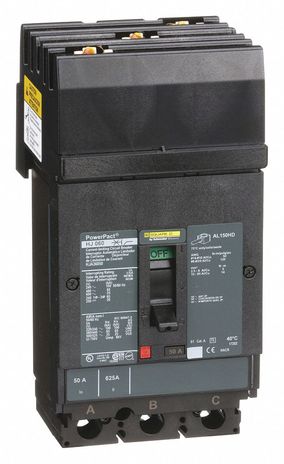

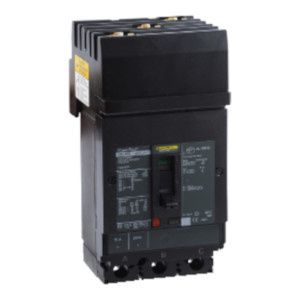

Square D HJA36050

Circuit breaker, PowerPacT H, 50A, 3 pole, 600VAC, 25kA, I-Line, thermal magnetic, 80%, ABC

Square D Molded Case Circuit Breaker

HJA36050 is a 3 pole 50 ampere thermal magnetic molded case circuit breaker, with maximum voltage rating of 600 V AC at 50/60 Hz and 250 V DC .

Specifications:

• Manufacturer : Square D
• Cat. No. : HJA36050
• Product Type : Molded Case Circuit Breaker
• Amperage : 50-Ampere
• System Voltage : Upto 600 V AC at 50/60 Hz/250 V DC* No. Of Poles : 3-Pole
• Interrupting Rating : 25 kA at 600 V AC
• Magnetic hold current : 400 A
• Magnetic trip current : 850 A
• Application : Power Distribution
• Approval : UL, CSA, IEC
• Hj Model
• Frame Type H
• Size 4.48 Inch W X 4.8 Inch D X 9.73 Inch H
• Tripping Method : Thermal Magnetic
• Terminal Wire Size : 14 To 3/0 Awg (Aluminum/Copper)
• Authentic Square D Product
