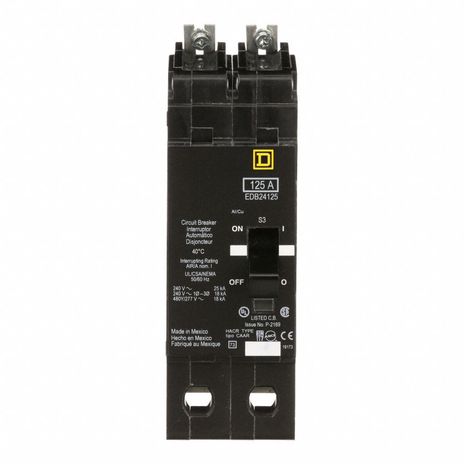

Square D EDB24125

Mini circuit breaker, E-Frame, 125A, 2 pole, 480Y/277VAC, 25kA max, bolt on

E-Frame Miniature circuit-breaker 125A, 2P, 480Y/277V, 18/25kA

• Range of product: 125 A Frame EDB-EGB-EJB
• Product or component type: Miniature circuit-breaker
• Device short name: EDB
• Module type: E-Frame
• Trip unit rating: 2300 A
• Line Rated Current: 125 A
• Maximum operating voltage: 480Y/277 V AC
• AWG gauge: AWG 12...AWG 2/0 aluminium, AWG 14...AWG 2/0 copper
• Breaking capacity: 18 kA 480Y/277 V AC
• Circuit breaker application: HACR rated
• Depth: 4.05 in (102.87 mm)
• Electrical connection: Lugs aluminium
• Height: 5.66 in (143.76 mm)
• Holding current: 1000 A
• Mounting mode: Bolt-on
• Number of poles: 2
• Number of spaces: 2
• Number of spaces required: 2
• Product destination: NF Panel board
• Protection type : Overload, Short-circuit
• Width: 1.96 in (49.78 mm)
• Trip unit technology: Thermal-magnetic
• Breaking capacity code: D
