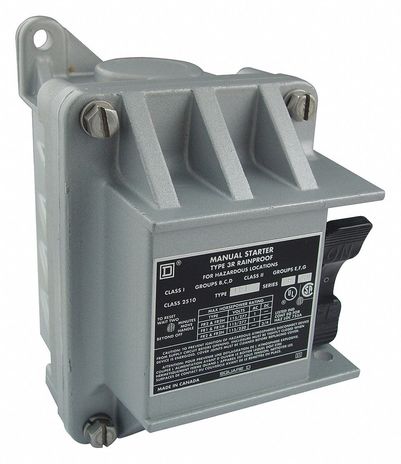

Square D 2510FR2H

Name: Square D 2510FR2H
Brand: Square D
SKU: CS1658472
Availability: OutOfStock

SKU: CS1658472MPN: 2510FR2HUPC/EAN: 785901554226

Manual Starter, fractional horsepower, 16A, 2 poles, 1 HP at 277 VAC, no indicator, NEMA 7\&9, 2 conduit opening

Product Details

Fractional Horsepower Manual Starter

Line Rated Current: 16A* Motor Power HP: 1 HP at 115 VAC, 277 VAC; 0.75 HP at 115V DC, 230V DC; 2 HP at 230V AC* System Voltage: 277V AC* Poles Description: 2-Pole* Control Type: Toggle Switch with Lock Off* Number of Phases: 1-Phase* Local Signaling: No Indicator* Reset: Manual* Motor Starter Type: Non-Reversing* Electrical Connection: Screw Clamp Terminals

In Rated Current	16 A
In Rated Current 1	16 A
Cable Entry	0.75 NPT (top and bottom)
Control Type	toggle switch (with lock-off)
Control Type 1	toggle switch (with lock-off)
Electrical Connection	screw clamp terminals
Local Signalling	no indicator
Motor Starter Type	non reversing
Motor Starter Type 1	non reversing
Network Number Of Phases	1 phase
Poles Description	2P
Product Certifications	UL listed file E42243 CCN NLRV# #CSA LR25490 class 3211 05
Product Or Component Type	Single Unit Manual Starter
Range Of Product	F
Reset	manual
Thermal Overload Type	melting alloy
