Square D 2510FG2P

Name: Square D 2510FG2P
Brand: Square D
SKU: CS1658423
Price: 127.92 USD
Availability: OutOfStock

SKU: CS1658423MPN: 2510FG2PUPC/EAN: 785901553960

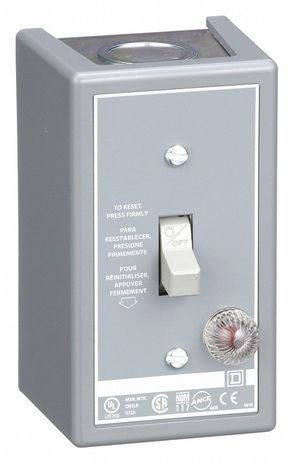

Manual starter, fractional horsepower, 16A, 2 poles, 1HP at 277VAC, toggle operated, red indicator, NEMA 1 enclosure

$127.92

Unit

Available on backorder

Quantity

remove

add

Product Details

Fractional Horsepower Manual Starter

Line Rated Current: 16A* Motor Power HP: 1 HP at 115 VAC, 277 VAC; 0.75 HP at 115V DC, 230V DC; 2HP at 230V AC* System Voltage: 277V AC, 230V DC* Poles Description: 2-Pole* Control Type: Toggle Switch* Number of Phases: 1-Phase* Local Signaling: Red Indicator* Reset: Manual* Motor Starter Type: Non-Reversing* Electrical Connection: Screw Clamp Terminals

In Rated Current	16 A
In Rated Current 1	16 A
Cable Entry	0.5” and 0.75” knock-outs (top and bottom)
Control Type	toggle switch
Control Type 1	toggle switch
Electrical Connection	screw clamp terminals
Local Signalling	red indicator
Motor Starter Type	non reversing
Motor Starter Type 1	non reversing
Network Number Of Phases	1 phase
Poles Description	2P
Product Certifications	UL listed file E42243 CCN NLRV# #CSA LR25490 class 3211 05
Product Or Component Type	Single Unit Manual Starter
Range Of Product	F
Reset	manual
Thermal Overload Type	melting alloy
