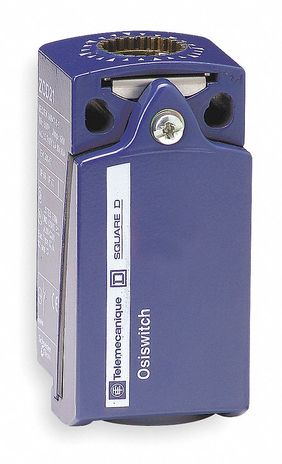

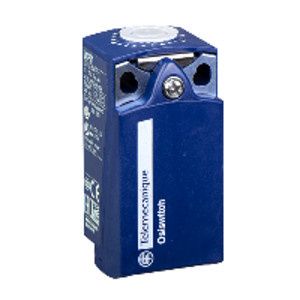

Square D ZCD21

Name: Square D ZCD21
Brand: Square D
SKU: CS1655989
Availability: OutOfStock

SKU: CS1655989MPN: ZCD21

Limit switch body, Limit switches XC Standard, ZCD, compact, 1NC+1 NO, snap action

Product Details

OsiSense XC Limit Switch Body

Design: Compact* Number of Poles: 2-Poles* Contacts Type and Composition: 1 NC + 1 NO* Contact Operation: Snap Action

Ambient Air Temperature For Storage	-40-70 °C
Associated Connection Component	ZCDEG13# #ZCDEF12# #ZCDEN12# #ZCDEP20# #ZCDEP16# #ZCDEG11
Associated Head	ZCE66# #ZCEH0# #ZCE08# #ZCE21# #ZCE14# #ZCE13# #ZCE24# #ZCE07# #ZCE02# #ZCE29# #ZCE01# #ZCE63# #ZCE06# #ZCE28# #ZCE27# #ZCE64# #ZCE09# #ZCE65# #ZCE62# #ZCE11# #ZCEH2# #ZCE10# #ZCE05# #ZCE67
Body Material	zamak
Body Type	fixed
Contact Operation	snap action
Contacts Insulation Form	Zb
Contacts Material	silver plated contacts
Contacts Type And Composition	1 NC + 1 NO
Design	compact
Device Short Name	ZCD
Minimum Actuation Speed	0.01 m/s
Number Of Poles	2.0
Positive Opening	with
Product Compatibility	XCKD
Product Or Component Type	limit switch body
Range Of Product	Telemecanique Limit switches XC Standard
Series Name	Standard compact
