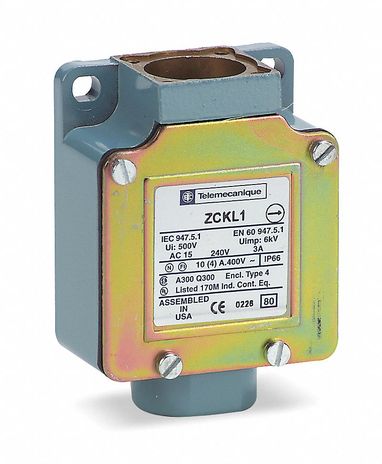

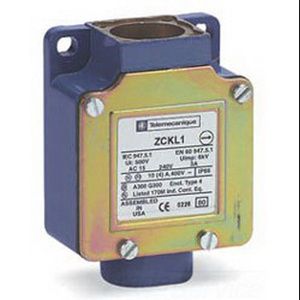

Square D ZCKL1H7

Name: Square D ZCKL1H7
Brand: Square D
SKU: CS1655903
Availability: OutOfStock

SKU: CS1655903MPN: ZCKL1H7Alternate Part #: SQD-ZCKL1H7

Limit switch body, Limit switches XC Standard, ZCKL, 1NC+1 NO, snap action, ½”NPT

Product Details

Limit Switch Body ZCKL - 1NC+1NO - Snap Action - ½ in. NPT

Ithe Conventional Enclosed Thermal Current	0.417
Ambient Air Temperature For Storage	-40-70 °C
Associated Head	ZCKD23# #ZCKD239# #ZCKD91# #ZCKD59# #ZCKD17# #ZCKD41# #ZCKD05# #ZCKD21# #ZCKD029# #ZCKD16# #ZCKD02# #ZCKD06# #ZCKD81# #ZCKD10# #ZCKD109# #ZCKD15# #ZCKD08# #ZCKD219
Body Material	metal
Body Type	fixed
Contact Operation	snap action
Contacts Material	silver plated contacts
Contacts Type And Composition	1 NC + 1 NO
Device Short Name	ZCKL
Environmental Characteristic	standard environment
Ik Degree Of Protection	IK05
Ip Degree Of Protection	IP66
Local Display	without
Minimum Actuation Speed	0.01 m/min
Number Of Poles	2.0
Positive Opening	with
Product Compatibility	XCKL
Product Or Component Type	limit switch body
Range Of Product	Telemecanique Limit switches XC Standard
Series Name	standard format
Terminals Description Iso N 1	(23-24)NO# #(13-14)NO
