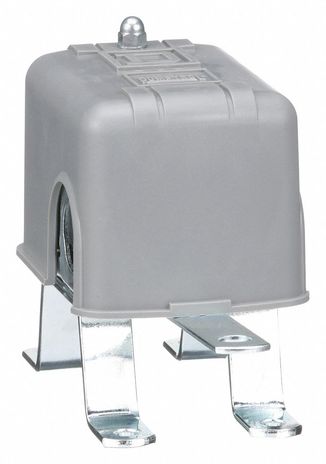

Telemecanique 9036DG2

Name: Telemecanique 9036DG2
Brand: Telemecanique
SKU: CS1652272
Price: 107.35 USD
Availability: InStock

SKU: CS1652272MPN: 9036DG2UPC/EAN: 785901575214

Float switch, Square D Pumptrol, open tank, NEMA 1, pedestal mounted, 2 NC DPST contacts

$107.35

Unit

4 Units Available at Factory - Ships Same/Next Business Day

Quantity

remove

add

Product Details

Float Switch:

Type: D* For open tank or sump applications* Enclosure Rating: NEMA 1* 1-Phase: 2HP@115VAC - 3HP@230VAC; 3-Phase: 3HP@115VAC - 5HP@230VAC - 1HP@460/575; 0.25HP@32VDC - 0.5HP@115/230VDC* Mounting: Bracket* 575VAC* 2 Normally Open* 2-Pole

Sena Ambient Air Temperature For Operation	-22-220 °F
Sena Ambient Air Temperature For Operation 1	-22-220 °F
Sena Ambient Air Temperature For Storage	-22-220 °F
Sena Device Application	open tank general purpose
Sena Device Mounting	pedestal
Sena Device Short Name	9036D
Sena Electrical Circuit Type	power circuit
Sena Enclosure Material	polypropylene or equivalent
Sena Factory Modification	without
Sena Float Position	any
Sena Float Rod Angle	vertical
Sena Kit Composition	float switch# #rod and float are to be choosen in accessories
Sena Local Signalling	without
Sena Maximum Operating Rate	60 cyc/mn
Sena Mechanical Durability	300 cycles
Sena Operating Position	vertical position only
Sena Product Certifications	UL listed file E12158# #CSA file LR25490
Sena Product Destination	for open tank or sump
Sena Product Or Component Type	float switch
Sena Product Specific Application	liquid level control
Sena Quantity Per Set	set of 1
Sena Range Of Product	Square D Pumptrol
Sena Standards	UL 508# #CE
Sena Terminal Block Type	4 terminals
Sena Terminals Description Iso N 1	line-load-load-line
Sena Type Of Packing	individual
