Telemecanique 9036FG30

Name: Telemecanique 9036FG30
Brand: Telemecanique
SKU: CS1652260
Price: 45.76 USD
Availability: InStock

SKU: CS1652260MPN: 9036FG30UPC/EAN: 785901009207

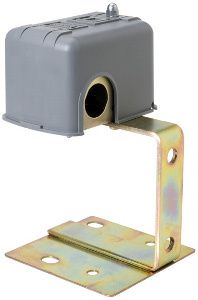

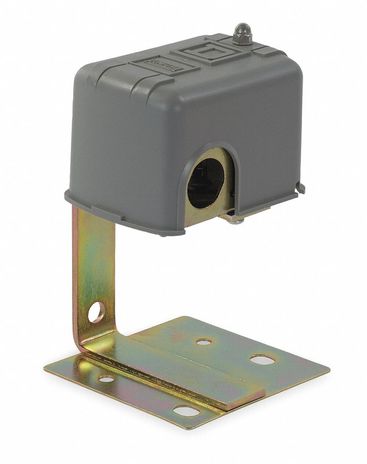

Float switch, Square D Pumptrol, open tank, NEMA 1, pedestal mounted, 2 NC DPST DB contacts

$45.76

Unit

2 Units Available at Factory - Ships Same/Next Business Day

Quantity

remove

add

Product Details

Float Switch

Open Tank* Pedestal Style* Two Pole* Contacts close on liquid rise* Dimensions: 4.8 x 7.6 x 5 in

Sena Ambient Air Temperature For Operation	-22-220 °F
Sena Ambient Air Temperature For Operation 1	-22-220 °F
Sena Ambient Air Temperature For Storage	-22-220 °F
Sena Device Application	open tank pedestal style
Sena Device Mounting	pedestal
Sena Device Short Name	9036FG
Sena Electrical Circuit Type	power circuit
Sena Enclosure Material	polypropylene or equivalent
Sena Factory Modification	without
Sena Float Position	any
Sena Float Rod Angle	vertical
Sena Kit Composition	rod and float are to be choosen in accessories# #float switch
Sena Local Signalling	without
Sena Materials In Contact With Fluid	aluminium# #polystyrene# #zinc plated steel or equivalent# #nylon
Sena Maximum Operating Rate	60 cyc/mn
Sena Mechanical Durability	300 cycles
Sena Operating Position	vertical position only
Sena Product Certifications	CSA file LR25490# #UL listed file E12158
Sena Product Destination	for open tank or sump
Sena Product Or Component Type	float switch
Sena Product Specific Application	liquid level control
Sena Quantity Per Set	set of 1
Sena Range Of Product	Square D Pumptrol
Sena Standards	CE# #UL 508
Sena Terminal Block Type	4 terminals
Sena Terminals Description Iso N 1	line-load-load-line
Sena Type Of Packing	individual
