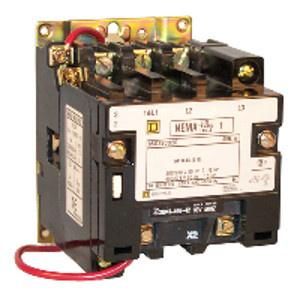

Square D 8502SCO1V02S
SKU: CS1648598MPN: 8502SCO1V02SUPC/EAN: 785901763918
NEMA Contactor, Type S, nonreversing, Size 1, 27A, 3HP at 230VAC, 1 phase, up to 100kA, 2 pole, 120VAC coil, open
$491.78
UnitAvailable on backorder
Product Details
Class 8502 Type S Full Voltage Magnetic Contactor:
- Non-Reversing* NEMA Size: 1* NEMA Degree of Protection: Not Rated* Line Rated Current: 27A* Rated Power in Horsepower: 3 HP 230 VAC, 2 HP 115 VAC* Phase: 1-Phase* Number of Poles: 2-Pole* Control Circuit: Separate Control Circuit* Control Circuit Voltage: 110 VAC 50Hz, 120 VAC 60Hz* Mounting: Surface* System Voltage: 600VAC* Electrical Connection: Screw Clamp Terminals
Attributes
| In Rated Current | 27 A |
| In Rated Current 1 | 27 A |
| Auxiliary Contact Composition | without |
| Contactor Application | non-reversing |
| Control Circuit | separate control circuit |
| Electrical Connection | screw clamp terminals |
| Nema Size | 1 |
| Network Number Of Phases | 1 phase |
| Poles Description | 2P |
| Product Certifications | UL listed file E78351 CCN NLDX# #CSA |
| Product Or Component Type | contactor |
| Provided Equipment | fuse not supplied |
| Range Of Product | 8502S |
Specifications
| SKU | CS1648598 |
|---|---|
| MPN | 8502SCO1V02S |
| UPC/EAN | 785901763918 |
You may also like
Square D 8502SCO2V02S
$454.10Unit
Square D 8502SCO3V02S
$668.43Unit
Square D 8502SCO2V08
$541.24Unit
Square D 8502SDO2V02S
$984.03UnitSquare D 8502SBO1V02S
$338.93UnitSquare D 8502SBO2V02S
$376.74Unit

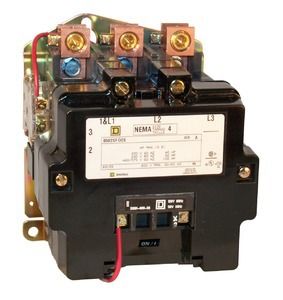

Square D 8502SFO2V02S
