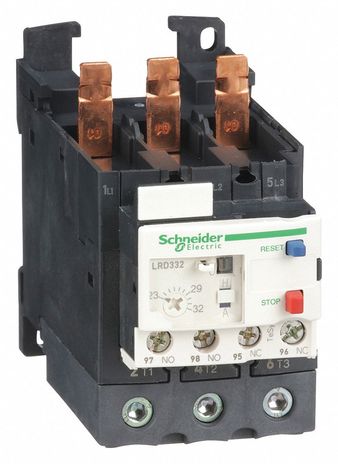

Square D LRD332

Name: Square D LRD332
Brand: Square D
SKU: CS1641287
Price: 129.32 USD
Availability: OutOfStock

SKU: CS1641287MPN: LRD332

Thermal overload relay, TeSys Deca, 690VAC, 23 to 32A, 1NO+1NC, class 10A, EverLink screw terminals

$129.32

Unit

Available on backorder

Quantity

remove

add

Product Details

EVERLING POWER TERMINAL

Ambient Air Temperature For Storage	-60-70 °C
Auxiliary Contact Composition	1 NO + 1 NC
Device Short Name	LRD
Network Frequency	0…400 Hz
Network Type	AC# #DC
Product Certifications	IEC# #UL# #CSA# #CCC# #EAC# #DNV-GL# #RMRS# #EU-RO MR# #LROS (Lloyds register of shipping)# #ATEX INERIS# #UKCA
Product Compatibility	LC1D40A# #LC1D65A# #LC1D50A
Product Name	TeSys LRD# #TeSys Deca
Product Or Component Type	differential thermal overload relay
Range	TeSys# #TeSys Deca
Relay Application	motor protection
Standards	EN/IEC 60947-4-1# #EN/IEC 60947-5-1# #UL 60947-4-1# #UL 60947-5-1# #CSA C22.2 No 60947-4-1# #CSA C22.2 No 60947-5-1# #GB/T 14048.4# #GB/T 14048.5# #EN 50495
Temperature Compensation	-20-60 °C
Thermal Protection Adjustment Range	23-32 A
