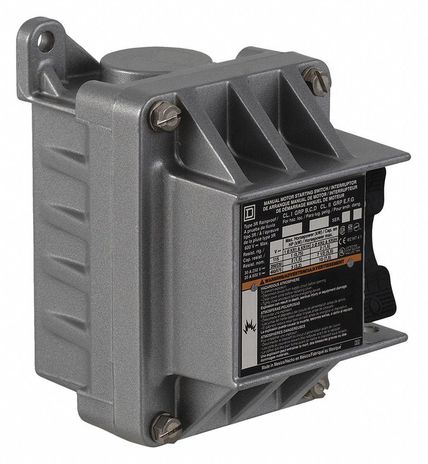

Square D 2510KR1

Name: Square D 2510KR1
Brand: Square D
SKU: CS1161751
Availability: OutOfStock

SKU: CS1161751MPN: 2510KR1UPC/EAN: 785901554639

Switch, manual, 20A, 2 pole, 3HP at 575VAC, single phase, toggle operated, no indicator, NEMA 7\&9, one conduit opening

Product Details

Single Unit Manual Switch

Line Rated Current: 30A* Motor Power HP: 3 HP at 460V AC; 2 HP at 230V AC, 115V AC; 3 HP at 575V AC; 1 HP at 90V DC; 2 HP at 115V DC, 1.5 HP at 230V DC* System Voltage: 600V AC, 230V DC* Poles Description: 2-Pole* Control Type: Toggle Switch* Number of Phases: 1-Phase* Local Signaling: No Indicator* Motor Starter Type: Non-Reversing* Electrical Connection: Screw Clamp Terminals

In Rated Current	20 A
In Rated Current 1	20 A
Cable Entry	0.75 NPT (bottom)
Control Type	toggle
Control Type 1	toggle
Electrical Connection	screw clamp terminals
Motor Starter Type	non reversing
Motor Starter Type 1	non reversing
Network Number Of Phases	1 phase
Poles Description	2P
Product Certifications	UL listed file E58760 CCN NPXZ# #CSA LR26817 class 3218 04
Product Or Component Type	Single Unit Manual Switch
Range Of Product	K
