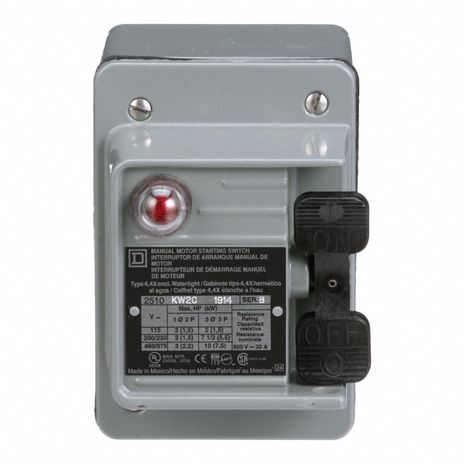

Square D 2510KW2C

Name: Square D 2510KW2C
Brand: Square D
SKU: CS816147
Price: 534.54 USD
Availability: OutOfStock

SKU: CS816147MPN: 2510KW2CUPC/EAN: 785901436584

Switch, manual, 30A, 3 pole, 10HP at 575VAC, three phase, toggle operated, red 440/600VAC indicator, NEMA 4 enclosure

$534.54

Unit

Available on backorder

Quantity

remove

add

Product Details

Single Unit Manual Switch

Line Rated Current: 30A* Motor Power HP: 2 HP at 115V AC; 1 HP at 90V DC; 2 HP at 115V DC; 1.5 HP at 230V AC; 7.5 HP at 230V AC, 10 HP at 460V AC, 575V AC* System Voltage: 600V AC, 230V DC* Poles Description: 3-Pole* Control Type: Toggle Switch* Number of Phases: 3-Phase* Local Signaling: Red Indicator 440-600V* Motor Starter Type: Non-Reversing* Electrical Connection: Screw Clamp Terminals

In Rated Current	30 A
In Rated Current 1	30 A
Cable Entry	0.75 NPT (bottom)
Control Type	toggle
Control Type 1	toggle
Electrical Connection	screw clamp terminals
Motor Starter Type	non reversing
Motor Starter Type 1	non reversing
Network Number Of Phases	3 phases
Poles Description	3P
Product Certifications	UL listed file E42243 CCN NLRV# #CSA LR25490 class 3211 05
Product Or Component Type	Single Unit Manual Switch
Range Of Product	K
