Turck FCS-N1/2A4-AP8X-H1141

SKU: CS115969MPN: FCS-N1/2A4-AP8X-H1141Alternate Part #: 6871004UPC/EAN: 4047101175349

6871004 - CAL (IMM), COMP-MON, GEN., GEN

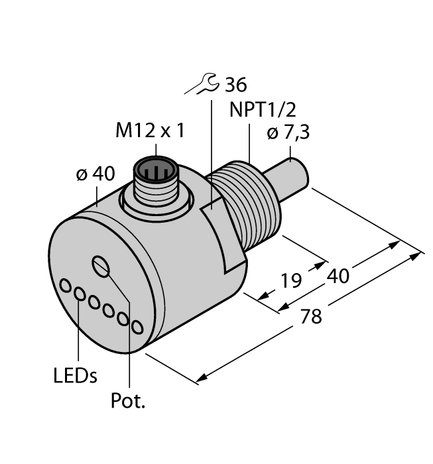

Turck FCS-N1/2A4-AN8X-H1141, FCS-N1/2A4-AP8X-H1141, FCS-N1/2A4-ARX-H1140
$856.36
Unit
Available on backorder
remove
add

Product Details

Flow Monitoring

Immersion Sensor with Integrated Processor

  • Sensor for liquid media
  • Calorimetric principle
  • Adjustment via potentiometer
  • Status indicated via LED chain
  • DC 3-wire, 19.2…28.8 VDC
  • NO contact, PNP output
  • Connector device, M12 × 1

Attributes

Ambient Temperature -20…+80 °C
Approvals UL
Customs Tariff Number 90261021000.0000
Design Immersion
Detection Type Calorimetric
Ecl Ss Code V5 1 4 27273190 -/- Flow meter (not classified)
Electrical Connection Connector, M12 × 1
Function Flow monitoring
Housing Material Stainless steel, 1.4571 (AISI 316Ti)
Medium liquids
Medium Temperature -20…+80 °C
Operating Voltage 19.2…28.8 VDC
Output Function NO contact, PNP
Process Connection ½″ NPT
Protection Class IP67
Sensor Material Stainless steel

Specifications

SKUCS115969
MPNFCS-N1/2A4-AP8X-H1141
Alternate Part #6871004
UPC/EAN4047101175349
