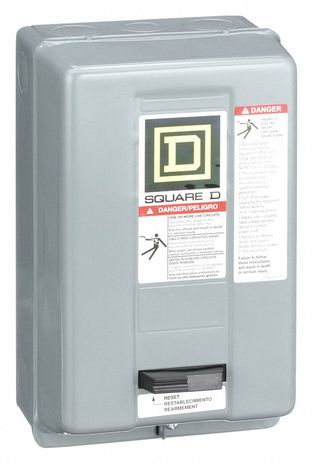

Square D 8536SAG12V02S
SKU: CS1020222MPN: 8536SAG12V02SUPC/EAN: 785901743569
H5152 Magnetic Motor Starter NEMA 120V 3P 9A

$381.88
UnitAvailable on backorder
Product Details
H5152 Magnetic Motor Starter NEMA Size 00 Amps AC 9 A Coil Volts 120V AC Enclosure NEMA Rating 1 HP @ 3 Phase - 240V 1 ½ hp HP @ 3 Phase - 480V 2 hp Action Nonreversing Number of Poles 3 HP @ 3 Phase - 208V 1 ½ hp HP @ 3 Phase - 575V 2 hp Height 10 in Width 6 in Depth 5.56 in Standards UL Listed/CSA Certified
Attributes
| In Rated Current | 0.375 |
| In Rated Current 1 | 0.375 |
| Auxiliary Contact Composition | without |
| Control Circuit | separate control circuit |
| Electrical Connection | screw clamp terminals |
| Motor Starter Type | non reversing |
| Motor Starter Type 1 | non reversing |
| Network Number Of Phases | 3 phases |
| Poles Description | 3P |
| Product Certifications | UL listed# #CSA# #NEMA |
| Product Or Component Type | motor starter |
| Range Of Product | S |
Specifications
| SKU | CS1020222 |
|---|---|
| MPN | 8536SAG12V02S |
| UPC/EAN | 785901743569 |
