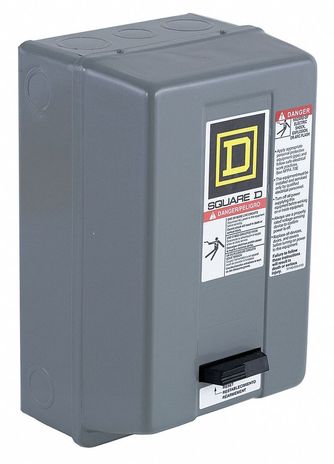

Square D 8536SAG12V02H30S
SKU: CS4809719MPN: 8536SAG12V02H30SUPC/EAN: 785901752202
NEMA motor starter, Type S, nonreversing, Size 00, 9A, 2HP at 460VAC, up to 100kA SCCR, 3 phase, 3 pole, Motor Logic, 120VAC coil, NEMA 1
$466.38
Unit1 in stock
Product Details
Type S Full Voltage Starter
- NEMA Size: Size 00* Degree of Protection: NEMA 1 General Purpose* Control Circuit Voltage: 110V AC 50Hz,120V AC 60Hz* Line Rated Current: 9A* Poles Description: 3-Poles* Number of Phases: 3-Phase* Control Circuit: Separate Control Circuit* Solid State Overload Relay* Motor Starter Type: Non-Reversing* Electrical Connection: Screw Clamp Terminals
Attributes
| In Rated Current | 0.375 |
| In Rated Current 1 | 0.375 |
| Auxiliary Contact Composition | without |
| Control Circuit | separate control circuit |
| Electrical Connection | screw clamp terminals |
| Motor Starter Type | non reversing |
| Motor Starter Type 1 | non reversing |
| Network Number Of Phases | 3 phases |
| Poles Description | 3P |
| Product Certifications | UL listed# #CSA# #NEMA |
| Product Or Component Type | motor starter |
| Range Of Product | S |
Specifications
| SKU | CS4809719 |
|---|---|
| MPN | 8536SAG12V02H30S |
| UPC/EAN | 785901752202 |
You may also like
Square D 8536SAO12V02H30S
$436.50Unit

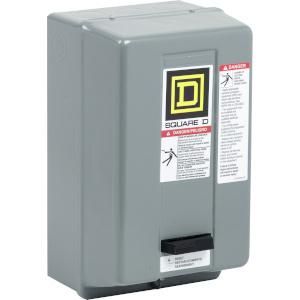

Square D 8536SAG12V08H30
$388.50Unit
Square D 8536SAO12V02S
$351.54Unit
Square D 8536SCO3V02H300S
$631.21UnitSquare D 8536SCO3V02H309S
$631.21Unit
Square D 8536SAG12V01S
$381.88Unit
Square D 8536SBG2V02H30S
$556.95UnitSquare D 8536SEO1V02H30S
$1,630.70Unit
Square D 8536SCG3V02H30S
$581.28Unit
Square D 8536SDG1V02H30S
$1,173.39Unit
Square D 8536SDO1V02H30S
$1,037.26Unit

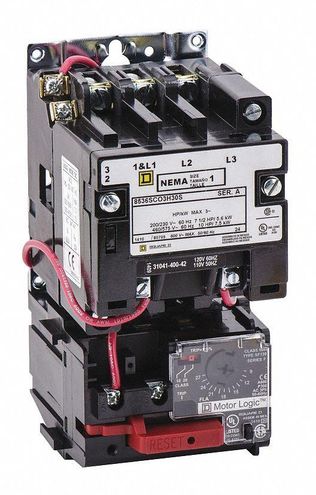

Square D 8536SCO3V02H30S
