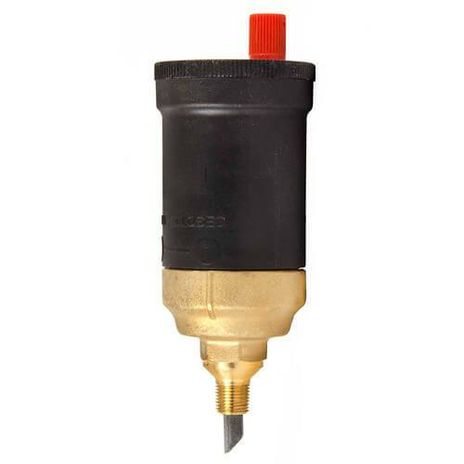

Resideo EA122A1028

Automatic Air Vent Built-In-Shut-Off Valve

Note: This product is intended for potable water plumbing.

The Honeywell Braukmann EA122A Automatic Air Vent purges air from high pressure mains and equipment in hot or cold closed water systems

Description: Automatic air vent with built-in shut off valve; EPDM seat disc and O-ring.

Application: Potable water installations

Features

• Includes removable float/valve assembly for easy servicing.
• Not for use in steam systems.
• Body, cover and float assembly made of thermoplastics.
• Internal parts made of corrosion-resistant and chemical-resistant materials for use with water systems containing light concentrations of propylene glycol, mineral oils, or petroleum-based oils.
• Oil resistant seal.
• EPDM seat disc and O-ring.

Specifications

• Connection Type: NPT Male
• Connection Size (in.): ⅛ in.
• Size (inch): ⅛ in.
• Maximum Safe Operating Pressure (psi): 90 psi
• Maximum Safe Operating Pressure (kPa): 620 kPa
• Maximum Operating Temperature (F): 212 F
• Maximum Operating Temperature (C): 100 C
• Dimensions (in.): 5 ¼ in. long x 1 ⅞ in. diameter
• Dimensions (mm): 133 mm long x 48 mm diameter
• Corrosion Resistant: Internal parts made of corrosion-resistant and chemical-resistant materials for use with hydronic systems that may contain concentrations of propylene or ethylene glycol, mineral oils, or petroleum-based oils.
